SIMPLEX INDUSTRIAL
A light fixture for illuminating indoor spaces.
Technical descriptions:
The body and flange of the luminaire are cast from an AlSi alloy and finished with a powder coating. There are two cable glands on the sides of the housing. Inside the luminaire, an E27 socket and a reflector are installed. The maximum cross-section of the connecting conductors is 4 mm².
Made in EU
Made in EU
CE
Lamp base
Socket
E27
Version
Version

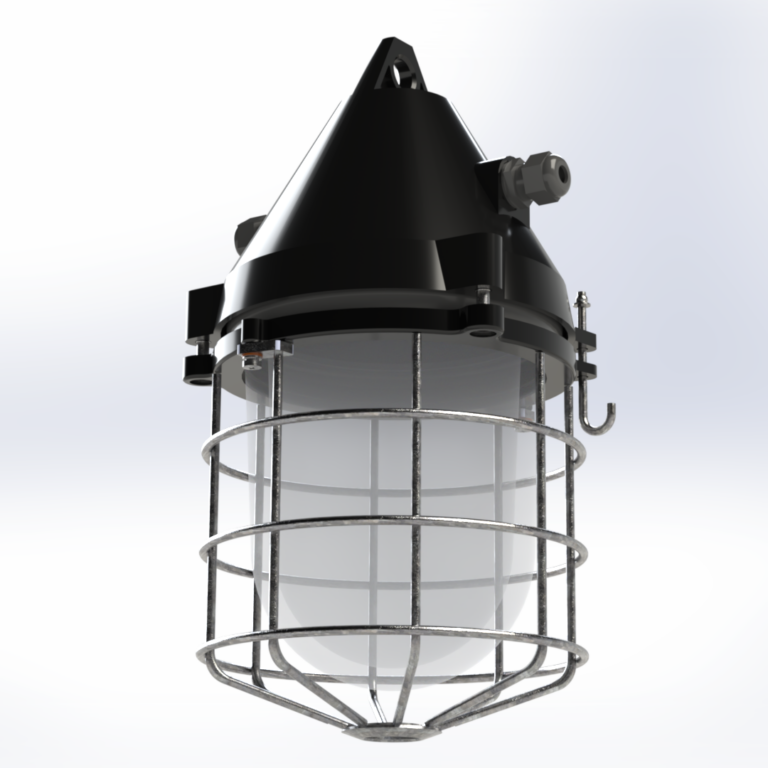

The luminaires are manufactured in various color finishes (RAL palette) according to the customer’s requirements. The luminaire can also be optionally equipped with a steel protective cage – designated as “K”.
Voltage
230V, 50Hz
Temperature
-20°C ÷ +30°C
Degree of protection (IP)
IP65
Installation
Using a suspension eye
Box
410 x 240 x 240 mm / 1 pc
Emergency version
no
Technical description
Luminaire body
AlSi alloy castings
Diffuser
tempered glass
Surface finish
none, powder coating in customer-specified RAL colour
Connection
through-wired (as standard)
Max. cable cross-section
4mm2 (standard)
Cable glands (material)
plastic (as standard), metal
On request
On request description
Protective basket 2-99.6195, protective glass 332.5018, ceiling mounting bracket 4-99.7795, adjustable mounting bracket 338.2783, flexible suspension 4-99.7995.
Files for download
| Type | Recommended light source [W] | Light fixture bracket | Weight [kg] |
|---|---|---|---|
| 511 14 07 H | LED bulb | E27 | 5 |
