TUB

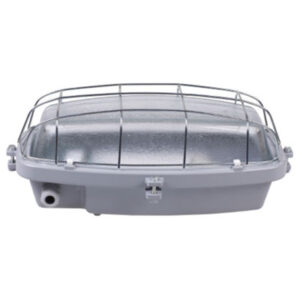

Light fitting for the illumination of indoor and outdoor industrial spaces.
Technical description:
There is electrical equipment and a reflector built inside the light fitting. When the light fitting is used as a terminal light fitting, the free cable outlet is blinded with a plug.
Made in EU
Made in EU
CE
Protection class
Protection class
I
Lamp base
Socket
E27
Version
Version
Emergency version of the luminaire type 511 32 01EM is manufactured for both maintained (M) and non-maintained (NM) emergency lighting, with a 2-hour autonomy.
Voltage
230V, 50Hz
Temperature
-20°C ÷ +40°C; 0°C ÷ +40°C version "EM", -40°C ÷ +60°C version "tF"
Degree of protection (IP)
IP66
Installation
on the ceiling, on the wall, or on another solid surface (structure) ensuring a secure fixing.
Box
410 x 460 x 170 / 2 pcs
Emergency version
yes
Technical description
Luminaire body
AlSi alloy castings
Diffuser
tempered glass
Surface finish
power coated
Connection
through-wired (as standard), end-wired
Max. cable cross-section
2,5mm2 (standard)
Cable glands (material)
plastic (as standard), metal
Cable glands (ø)
ø20
On request
On request description
blinding plug PG11/M16, glass cover 132.5069, protective basket 1-99.8535/1.
Use
Files for download
| Type | Recommended light source [W] | Voltage [V/Hz] | Weight [kg] |
|---|---|---|---|
| 511 32 01 | Halogen bulb Philips EcoClassic 140 | 230 / 50 | 4 |
| 511 32 01 | Bulb CLAS 200 | 230 / 50 | 4 |
| 511 32 01 | LED bulb | 230 / 50 | 4 |
| 511 32 24 | Bulb na 24 V DC, 100 | 24 V DC | 4 |
| 511 32 01 tF | Halogen bulb Philips EcoClassic 140 | 230 / 50 | 4 |
| 511 32 01 tF | Bulb CLAS 200 | 230 / 50 | 4 |
| 511 32 01 tF | Blended lamp HWL 160 | 230 / 50 | 4 |
