ELEKTROSVIT Svatobořice, a. s.
Tradiční výroba průmyslové osvětlovací techniky

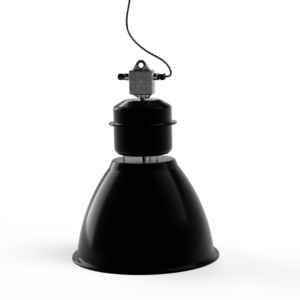

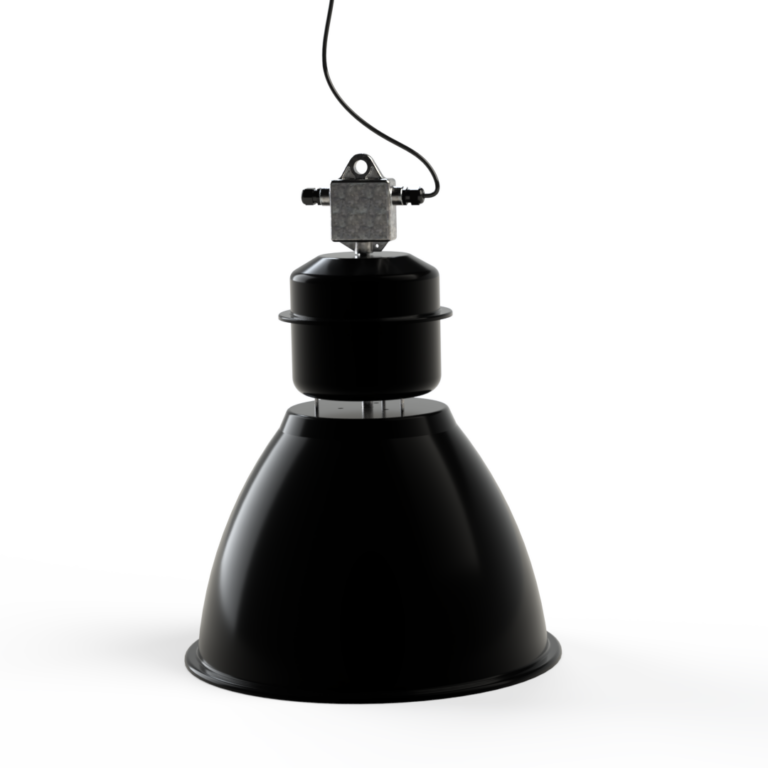

MERIDIAN INDUSTRIAL
A light fixture for illuminating indoor spaces.
Technical description:
The reflector is made of polished aluminum with a powder-coated finish.
Made in EU
Made in EU
CE
Version
Version
The luminaire can be equipped with a frame with protective tempered glass and a seal for IP54 protection.
Voltage
230V, 50Hz
Temperature
-25°C ÷ +30°C
Degree of protection (IP)
IP23, IP54 (with a frame with protective tempered glasa and a seal)
Installation
hanging
Box
570 x 570 x 800 / 1 pc
Emergency version
no
Technical description
Luminaire body
steel stamping
Surface finish
powder coating in customer-specified RAL colour
Connection
through-wired (as standard)
Max. cable cross-section
4mm2 (standard)
Cable glands (material)
plastic (as standard), metal
On request
On request description
a frame featuring protective tempered glass and a seal 2-99.6107
Use
Files for download
| Type | Recommended light source [W] | Lighting fixture bracket | Weight [kg] |
|---|---|---|---|
| 541 01 01 H | Bulb max. 200 | E27 | 10 |
| LED bulb | |||
| 541 01 02 H | Bulb max. 200 | E27 | 10 |
| LED bulb |
