ELEKTROSVIT Svatobořice, a. s.
Tradiční výroba průmyslové osvětlovací techniky

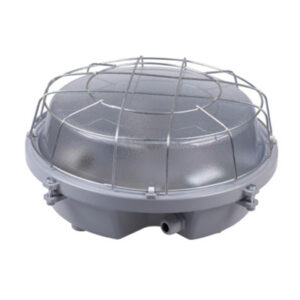

TURTLE
Light fitting for the illumination of indoor and outdoor industrial spaces.
Technical description:
Electrical equipment is installed inside the light fitting. When the light fitting is used as a terminal light fitting, the free cable outlet is blinded with a plug.
Made in EU
Made in EU
CE
Protection class
Protection class
I
Lamp base
Socket
E27
Version
Voltage
230V, 50Hz
Temperature
-25°C ÷ +40°C, -50°C ÷ +80°C version "Ht"
Degree of protection (IP)
IP66
Installation
on the ceiling, on the wall, or on another solid surface (structure) ensuring a secure fixing.
Box
400 x 400 x 190 mm / 1 pc
Emergency version
no
Technical description
Luminaire body
AlSi alloy castings
Diffuser
tempered glass
Surface finish
power coated
Connection
through-wired (as standard), end-wired
Max. cable cross-section
4mm2 (standard)
Cable glands (material)
plastic (as standard), metal
Cable glands (ø)
ø25
On request
On request description
blinding plug PG11/M16, glass cover 232.5070, protective basket 1-99.8534/1.
Use
Files for download
| Type | Recommended light source [W] | Voltage [V/Hz] | Weight [kg] |
|---|---|---|---|
| 511 33 02 | 2 x Halogen bulb Philips EcoClassic 105 | 230 / 20 | 6 |
| 511 33 02 | 2 x Bulb CLAS 200 | 230 / 50 | 6 |
| 511 33 02 | LED bulb | 230 / 50 | 6 |
| 511 33 02 Ht | 2 x Halogen bulb Philips EcoClassic 70 | 24 V DC | 6 |
| 511 33 02 Ht | 2 x Bulb CLAS 100 | 230 / 50 | 6 |
