FARMER LED VINTAGE
Light fitting for the illumination of indoor and outdoor industrial spaces.
Technical description:
Color temperature according to customer specifications; we offer 2700K, 3000K, 4000K, 5000K, 5700K, and 6500K. The fixture is manufactured with a compact LED module.
Check out the gallery.
Made in EU
Made in EU
CE
Version
LED
LED
Version

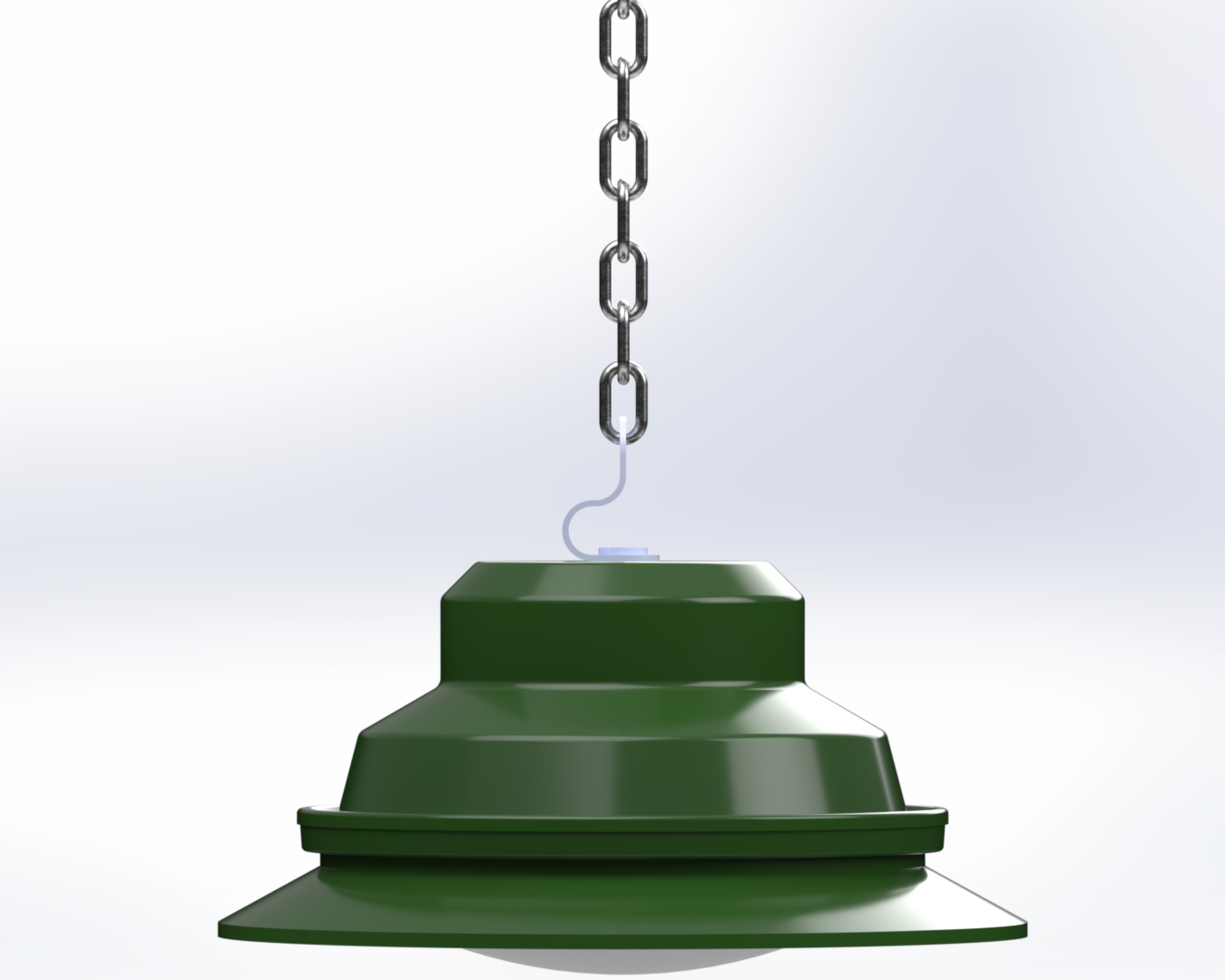

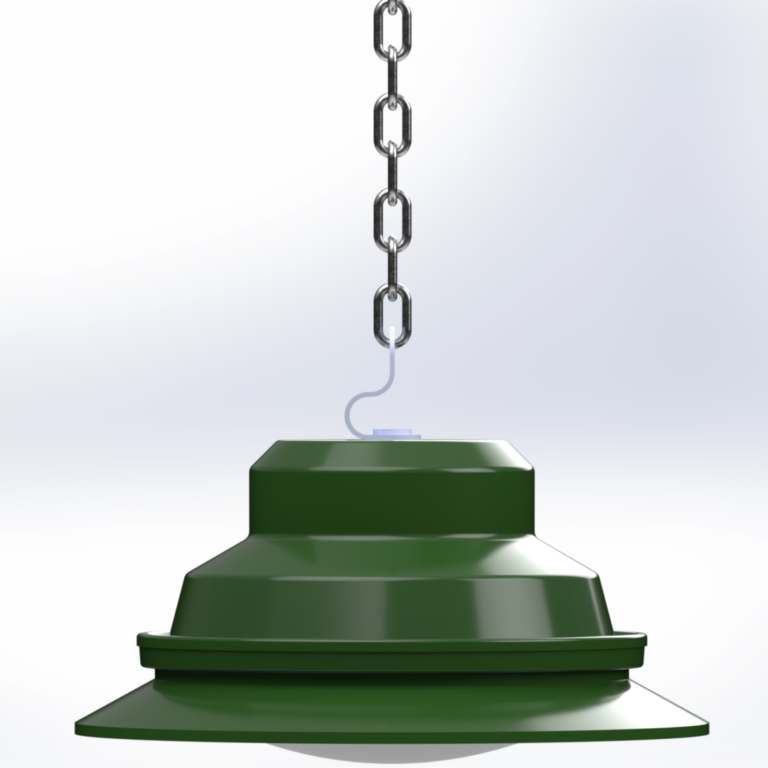

Depending on the specific type, the luminaire may include: a connection box made of AlSi alloy, a galvanized steel tube with a connection box, a suspension eye, or a chain (standard length 0.5 m).
Voltage
198-264V AC; 176-276V DC
Temperature
-40°C ÷ +60°C
Installation
depending on the type of light fixture
Emergency version
no
Technical description
Luminaire body
steel sheet
Diffuser
inorganic glass cover
Surface finish
powder coating in customer-specified RAL colour
Connection
through-wired (as standard)
Max. cable cross-section
4mm2 (standard)
Cable glands (material)
plastic (as standard), metal
Cable glands (ø)
ø20
Lifetime
Lifetime
100.000 hodin, L90B10
On request
On request description
protective steel basket
Files for download
| Type | Power [W] / Luminous flux [lm] | Light output [lm/W] | Angle of beam [°] | Color temperature [K] | CRI | Part of the luminaire | Weight [kg] |
|---|---|---|---|---|---|---|---|
| 291 11 01 (K) | 30 / 4 620 | 154 | 120 | 2700, 3000, 4000, 5000, 5700, 6500 | >80 | Pipe and terminal box | 4,8 |
| 291 12 01 (K) | 30 / 4 620 | 154 | 120 | 2700, 3000, 4000, 5000, 5700, 6500 | >80 | Holder | 4,8 |
| 291 13 01 (K) | 30 / 4 620 | 154 | 120 | 2700, 3000, 4000, 5000, 5700, 6500 | >80 | Terminal box | 4,8 |
| 291 14 01 (K) | 30 / 4 620 | 154 | 120 | 2700, 3000, 4000, 5000, 5700, 6500 | >80 | Chain | 4,8 |
| *By adding letter “K” after the type designation, the light fittings will be provided with protective baskets (e.g. 291 12 01K) |
