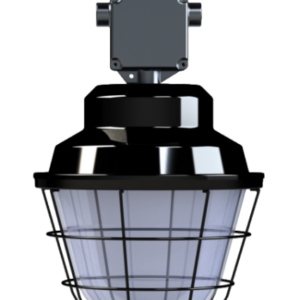

FARMER TORNADO
A light fixture for illuminating indoor spaces.
Technical description:
The inorganic glass cover with seal and protective basket are fixed to the body with four metal caps.
According to the individual types, the light fitting includes: an AlSi terminal box, a steel pipe, or a galvanized steel sheet boom.
Made in EU
Made in EU
CE
Version
Version
Optional version of light fittings with reinforced corrosion protection - version "pz"; version with a protective steel basket - version "K"; version with a protective polycarbonate basket and stainless-steel caps - version "p".
Voltage
230V, 50Hz
Installation
depending on the type of light fixture
Emergency version
no
Technical description
Luminaire body
steel sheet
Diffuser
inorganic glass cover
Surface finish
powder coating in customer-specified RAL colour
, powder coating RAL 9006
Connection
through-wired (as standard)
Max. cable cross-section
2,5mm2 (standard)
Cable glands (material)
plastic (as standard), metal
On request
On request description
protective steel basket 1-99.6248, protective basket PMMA 182.5005, protective basket polycarbonate 182.2540, glass cover 232.5068/1, metal cap 4-99.8470/01, stainless steel cap 4-99.6180/01.
Files for download
| Type | Recommended light source [W] | Part of light fitting | Weight [kg] |
|---|---|---|---|
| 581 31 01 | LED bulb | Terminal box | 4,5 |
| 581 31 02 | holder | 4,5 | |
| 581 31 03 | Pipe and terminal box | 4,5 | |
| 581 31 04 | Boom | 4,5 |
| *By adding the letter “K” after the type designation, the light fittings will be provided with protective baskets (e.g. 581 31 01K) |
| **By adding the letter “p” after the type designation, the light fittings will be made with protective polycarbonate baskets and stainless-steel caps – for harsh conditions (e.g. 581 31 01p) |
| ***By adding the letters “pz” after the type designation, the light fittings will be made with reinforced corrosion protection – for extra harsh conditions (e.g. 581 31 01pz). |
| Any combination of special designs according to the customer’s wishes |
