ELEKTROSVIT Svatobořice, a. s.
Tradiční výroba průmyslové osvětlovací techniky

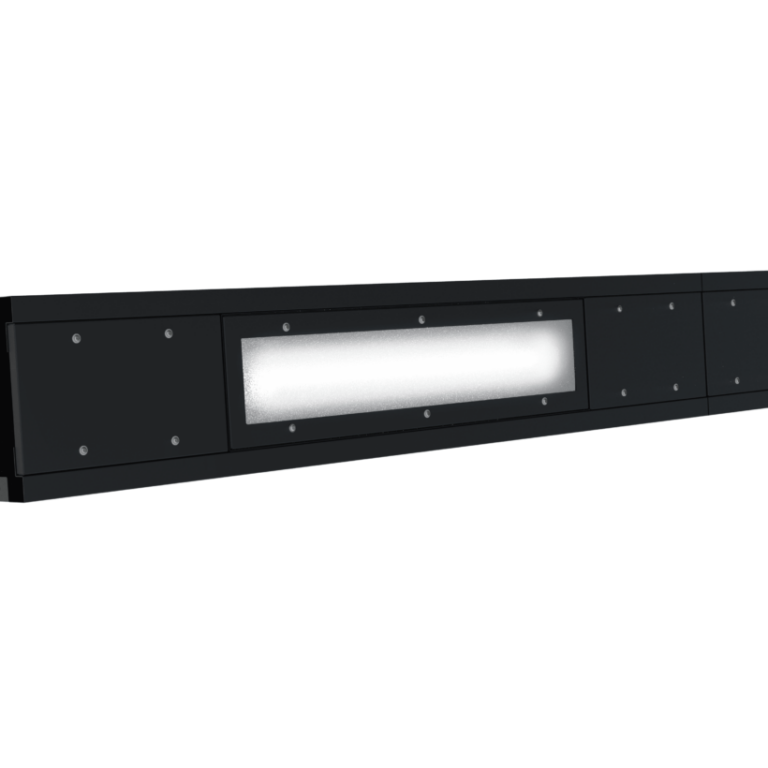

ES INV320LED RC LN
A vandal-resistant luminaire characterized by a very high level of impact resistance (IK11+). The luminaire is designed for installation in passageways, for wall or ceiling mounting as a linear fixture
Technical description:
The body of the luminaire is made of stainless steel and powder coated. The optical housing is made of thick prismatic polycarbonate to ensure its durability, and a special screw prevents unauthorized access.
Made in EU
Made in EU
CE
Protection class
Protection class
II
Version
LED
LED
Version
Surge protection - 10kV
Voltage
230V, 50-60Hz (34E), 230V, 0/50-60Hz (35E)
Temperature
-40°C ÷ +45°C
Degree of protection (IP)
IP65
Impact resistance (IK)
IK11+
Installation
For passageways, for wall or ceiling mounting as a linear luminaire.
Emergency version
yes
Technical description
Luminaire body
stainless steel
Diffuser
thick prismatic polycarbonate
Surface finish
power coated
Max. cable cross-section
2,5mm2 (standard)
Lifetime
Lifetime
>70.000 hodin, L80B10
On request
On request description
ZB – Central battery system
A3 – Version equipped with a 3-hour emergency power module
A3S – Version equipped with a 3-hour emergency power module (for sub-zero temperatures)
SNS – Motion sensor manually adjustable on the module
Use
