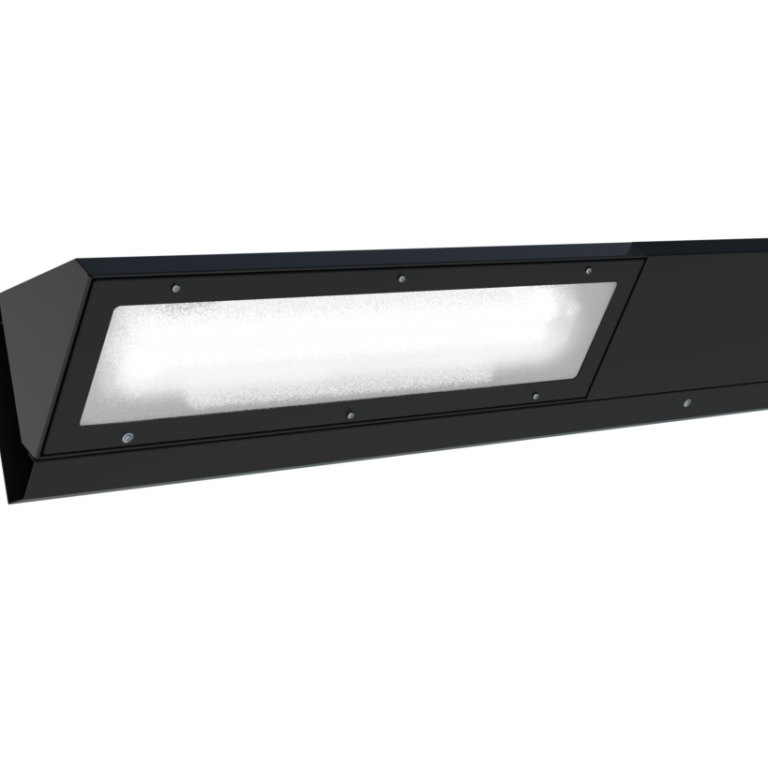

ES INV320LED-…-LN
Vandal resistant luminaire system (IK11+) – underpasses, overpasses
Technical description:
The body of the luminaire is made of stainless steel and powder coated. The optical cover is made of thick prismatic polycarbonate to ensure its durability, and a special screw prevents unauthorized access.
The luminaire system allows safe cable routing and quick installation in the space between the wall and ceiling in communication routes.
Made in EU
Made in EU
CE
Protection class
Protection class
II
Version
LED
LED
Version
Surge protection - 10kV
Voltage
230V, 50-60Hz (34E), 230V, 0/50-60Hz (35E)
Temperature
-40°C ÷ +45°C
Degree of protection (IP)
IP65
Impact resistance (IK)
IK11+ (150J)
Installation
In the space between the wall and the ceiling (e.g. in corridors)
Technical description
Luminaire body
stainless steel
Diffuser
opal polycarbonate (PC)
Surface finish
power coated
Connection
end-wired, průchozí
Max. cable cross-section
2,5mm2 (standard)
Lifetime
Lifetime
>70.000h, L80B10
On request
On request description
ZB – Central battery
A3 – Version equipped with 3-hour emergency power supply module
A3S – Version equipped with 3-hour emergency power supply module (sub-zero temperatures)
SNS – Motion sensor set manually on the module
Use
