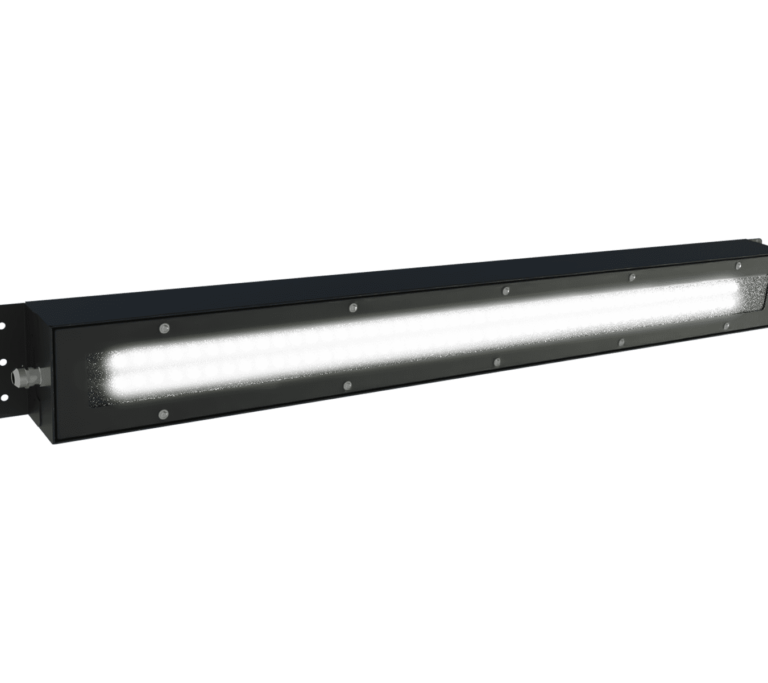

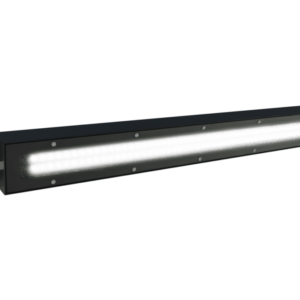

ES INV320LED-RC shelters
Vandal-resistant luminaire with LED modules, designed to be installed in a recess in the ceiling or wall. It features a very high degree of impact resistance (IK11+)
Technical description:
The body of the luminaire is made of stainless steel and powder coated. The optical housing is made of thick prismatic polycarbonate to ensure its durability, and a special screw prevents unauthorized access.
Made in EU
Made in EU
CE
Protection class
Protection class
II
Version
LED
LED
Voltage
220-240V 50-60Hz (34E), 220-240V 0/50-60Hz (35E)
Temperature
-40°C ÷ +45°C
Degree of protection (IP)
IP65
Impact resistance (IK)
IK11+
Installation
In a recessed ceiling or wall niche
Emergency version
yes
Technical description
Luminaire body
stainless steel
Diffuser
opal polycarbonate (PC)
Surface finish
prášková barva
Max. cable cross-section
4mm2 (standard)
Cable glands (material)
metal
Lifetime
Lifetime
>70.000h, L80B10
On request
On request description
ZB – Central battery system
A3 – Version equipped with a 3-hour emergency power module
A3S – Version equipped with a 3-hour emergency power module (for sub-zero temperatures)
DA – DALI
Use
Files for download
| Type – narrow beam | Power [W] / Luminous flux [lm] | Light output [lm/W] | Max. ambient temperature [°C] | Color temperature [K] | CRI |
|---|---|---|---|---|---|
| ES INV320LED-1200-J2-1 | 18,2 / 2 288 | 126 | 45 | 4000 | >80 |
| ES INV320LED-1200-J2-3 | 26,2 / 3 187 | 122 | 45 | 4000 | >80 |
| ES INV320LED-1200-B2-1 | 35,4 / 4 576 | 129 | 40 | 4000 | >80 |
| Type – wide beam | Power [W] / Luminous flux [lm] | Light output [lm/W] | Max. ambient temperature [°C] | Color temperature [K] | CRI |
|---|---|---|---|---|---|
| ES INV320LED-1200-J4-3 | 51,3 / 6 729 | 131 | 45 | 4000 | >80 |
| ES INV320LED-0600-B4-2 | 80,3 / 10 450 | 130 | 40 | 4000 | >80 |
Optional versions – see data sheet
