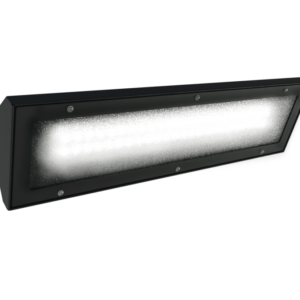

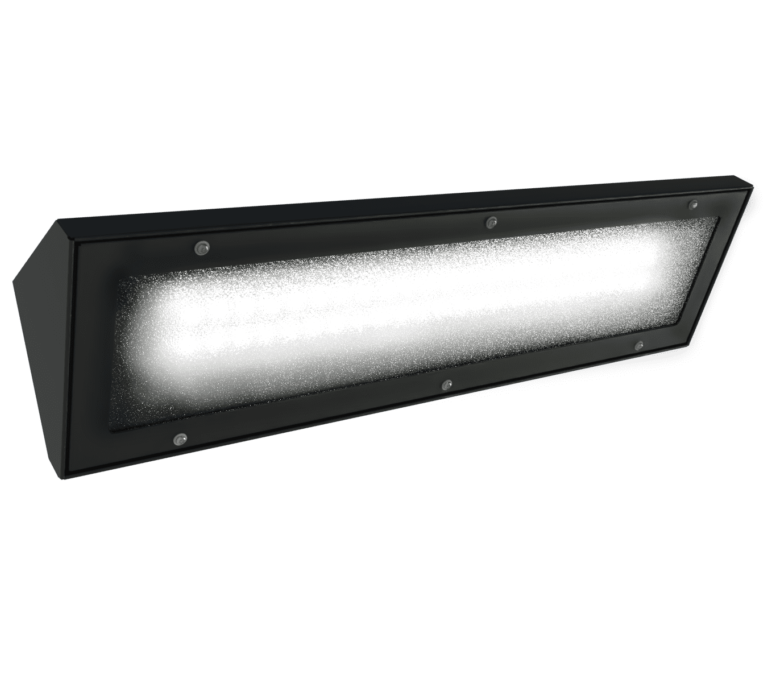

ES INV320LED
The luminaire is designed for installation in passageways, in the space between the wall and the ceiling.
Technical description:
The housing is made of powder coated stainless steel. The shade is made of polycarbonate. LED modules light fixture characterised by very high shock resistance (IK11+). Cable inlets have been located in a recess to allow installation of the fixture directly to the wall.
Made in EU
Made in EU
Version
LED
Version
Voltage
Temperature
Degree of protection (IP)
Impact resistance (IK)
Installation
Emergency version
Technical description
Luminaire body
Diffuser
Surface finish
Max. cable cross-section
Cable glands (material)
Lifetime
Lifetime
>70.000h L80B10
On request
On request description
ZB – Version with driver for central battery – no switching module
A3 – Version with 3h emergency module, available only with 34E power supply (230V, 50-60Hz). The ambient temperature must be at least 0°C.
A3S – Version with 3h emergency module, available only with 34E power supply (230V, 50-60Hz). The ambient temperature must be higher than -20 oC.
SNS – Motion and light level sensor.
Use
Files for download
| Type | Power [W] / Luminous flux [lm] | Luminous efficiency [lm/W] | Max. ambient temperature[°C] | Color temperature [K] | CRI | Weight [kg] |
|---|---|---|---|---|---|---|
| ES INV320LED-0600-J2-1 | 18,2 / 2 395 | 132 | 45 | 4000 | >80 | 8,5 |
| ES INV320LED-0600-J2-3 | 26,2 / 3 392 | 129 | 45 | 4000 | >80 | 8,5 |
| ES INV320LED-0600-B2-1 | 35,4 / 4 790 | 135 | 45 | 4000 | >80 | 8,5 |
| ES INV320LED-0600-B2-2 | 40,7 / 5 479 | 134 | 45 | 4000 | >80 | 8,5 |
| ES INV320LED-1200-J4-1 | 35,4 / 4 790 | 135 | 45 | 4000 | >80 | 15 |
| ES INV320LED-1200-J4-2 | 40,7 / 5 470 | 134 | 45 | 4000 | >80 | 15 |
| ES INV320LED-1200-J4-3 | 51,3 / 6 784 | 132 | 45 | 4000 | >80 | 15 |
| ES INV320LED-1200-B4-1 | 69,8 / 9 581 | 137 | 45 | 4000 | >80 | 15 |
| ES INV320LED-1500-J4M2-1 | 44,0 / 5 988 | 136 | 45 | 4000 | >80 | 19,5 |
| ES INV320LED-1500-J4M2-2 | 50,6 / 6 835 | 135 | 40 | 4000 | >80 | 19,5 |
