ES INV320LED -..-SF

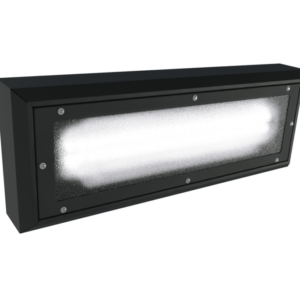

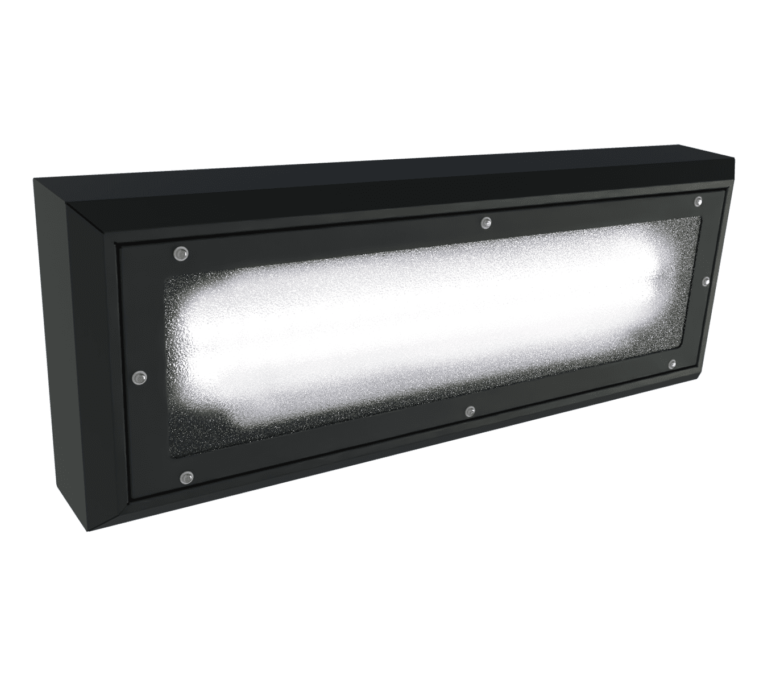

A vandal-resistant light fixture (IK11+), designed for ceiling or wall mounting.
Technical description:
The body of the luminaire is made of stainless steel and powder coated. The optical cover is made of thick prismatic polycarbonate to ensure its durability, and a special screw prevents unauthorized access.
Made in EU
Made in EU
CE
Protection class
Protection class
II
Version
LED
LED
Version
Surge protection: 10kV (LN)
Voltage
220-240V 50-60Hz (34E), 220-240V 0/50-60Hz (35E)
Temperature
-40°C ÷ +45°C
Control
DALI-2 (DA)
Degree of protection (IP)
IP65
Impact resistance (IK)
IK11+ (150J)
Installation
on the ceiling or wall
Emergency version
yes
Technical description
Luminaire body
stainless steel
Diffuser
opal polycarbonate (PC)
Surface finish
power coated
Max. cable cross-section
4mm2 (standard)
Cable glands (material)
plastic (as standard)
Lifetime
Lifetime
>50.000h L80B50
>70.000h L80B10
On request
On request description
ZB – Central battery system
A3 – Version equipped with a 3-hour emergency power module
A3S – Version equipped with a 3-hour emergency power module (for sub-zero temperatures)
DA – Version equipped with a power supply with a DALI-2 interface
SNS – Motion sensor manually adjustable on the module
Use
Files for download
| Type | Power [W] / Luminous flux [lm] | Light output [lm/W] | Max. ambient temperature [°C] | Color temperature [K] | CRI | Weight [kg] |
|---|---|---|---|---|---|---|
| ES INV320LED-0600-J2-1-..-SF | 18,2 / 2 427 | 133 | 45 | 4000 | >80 | 11,5 |
| ES INV320LED-0600-J2-3-..-SF | 26,2 / 3 308 | 126 | 45 | 4000 | >80 | 11,5 |
| ES INV320LED-0600-B2-1-..-SF | 35,4 / 4 854 | 137 | 45 | 4000 | >80 | 11,5 |
| ES INV320LED-0600-B2-2-..-SF | 40,7 / 5 487 | 135 | 45 | 4000 | >80 | 11,5 |
| ES INV320LED-1200-J4-1-..-SF | 35,4 / 4 854 | 137 | 45 | 4000 | >80 | 18,5 |
| ES INV320LED-1200-J4-2-..-SF | 40,7 / 5 486 | 135 | 45 | 4000 | >80 | 18,5 |
| ES INV320LED-1200-J4-3-..-SF | 51,3 / 6 615 | 129 | 45 | 4000 | >80 | 18,5 |
| ES INV320LED-1200-B4-1-..-SF | 69,8 / 9 708 | 139 | 45 | 4000 | >80 | 18,5 |
| ES INV320LED-1200-B4-2-..-SF | 80,3 / 10 974 | 137 | 45 | 4000 | >80 | 18,5 |
| ES INV320LED-1500-J4M2-1-..-SF | 44,0 / 6 068 | 138 | 45 | 4000 | >80 | 21,0 |
| ES INV320LED-1500-J4M2-3-..-SF | 63,9 / 8 269 | 129 | 45 | 4000 | >80 | 21,0 |
Optional versions, see gallery or datasheet.
