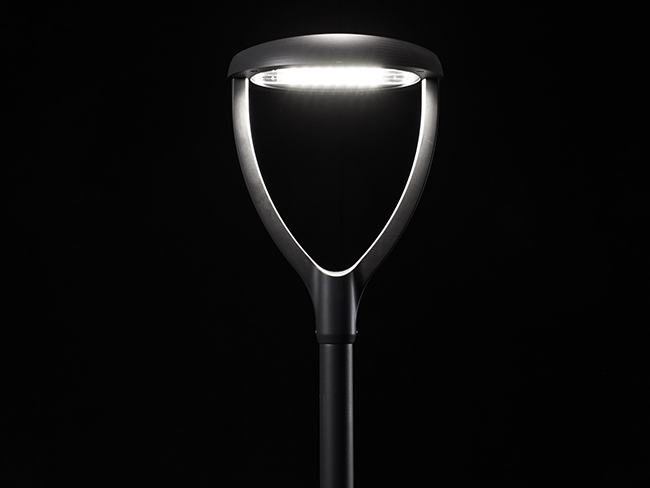

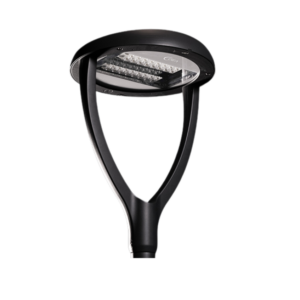

ES DEA PARK
Use: for lighting tree-lined avenues, parks, bike paths, small squares, small parks, …
Technical description:
The top cover, glass holder, and V-shaped part are manufactured from die-cast aluminium in accordance with EN 47100, with low copper content and excellent resistance to atmospheric influences.
Upper cover with a smooth surface and a highly esthetic appearance.
A gray (RAL 7021) V-shaped aluminum die-casting for pole mounting.
The luminaire is secured to the pole using two stainless steel screws.
Finish: grey polyester powder coating (RAL 7021), providing UV resistance in compliance with ASTM D4587:2011 and salt spray resistance in accordance with EN ISO 9227:2017 (3000 hours).
PTFE pressure compensation filter.
Removable gasket made of non-aging rubber.
The diffuser is made of extra-clear tempered safety glass, 4 mm thick, with an aesthetically designed light grey rim (RAL 7035)
External stainless steel screws

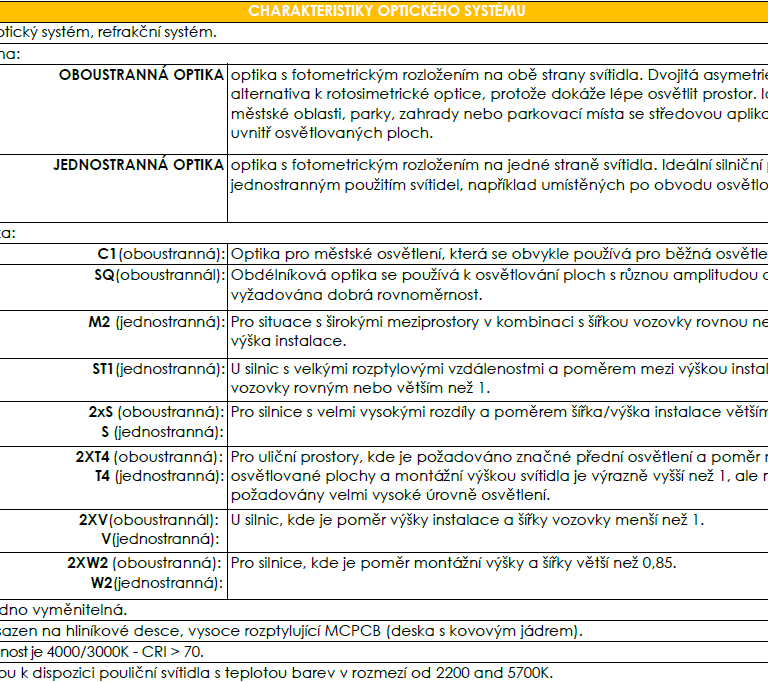

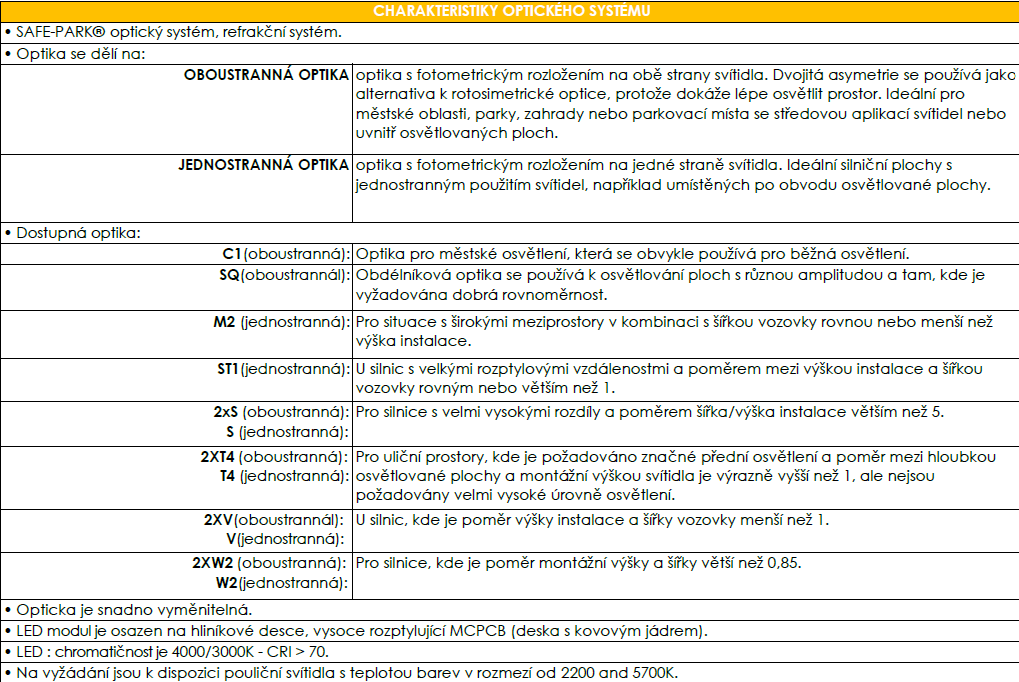

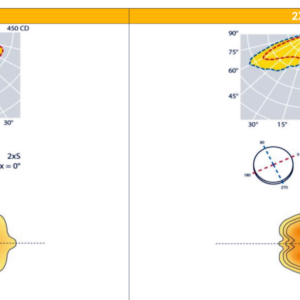

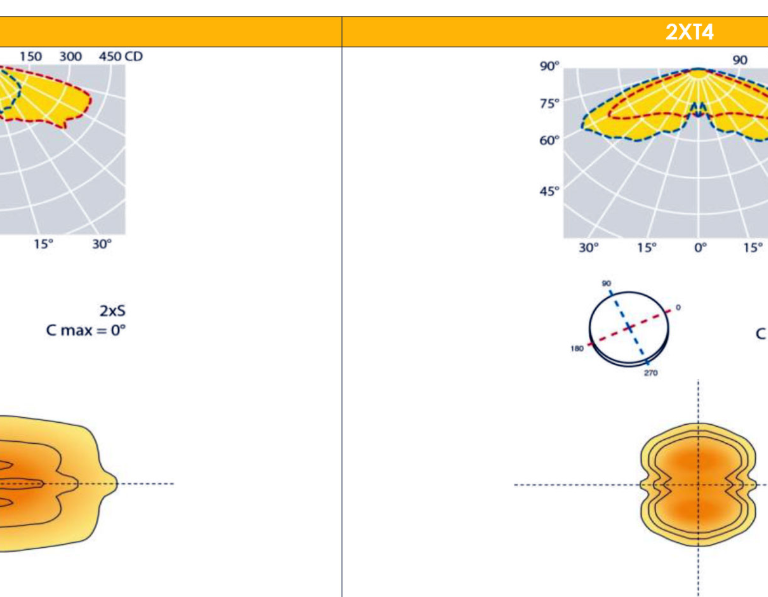

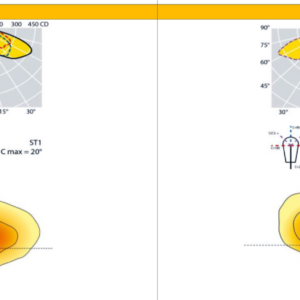

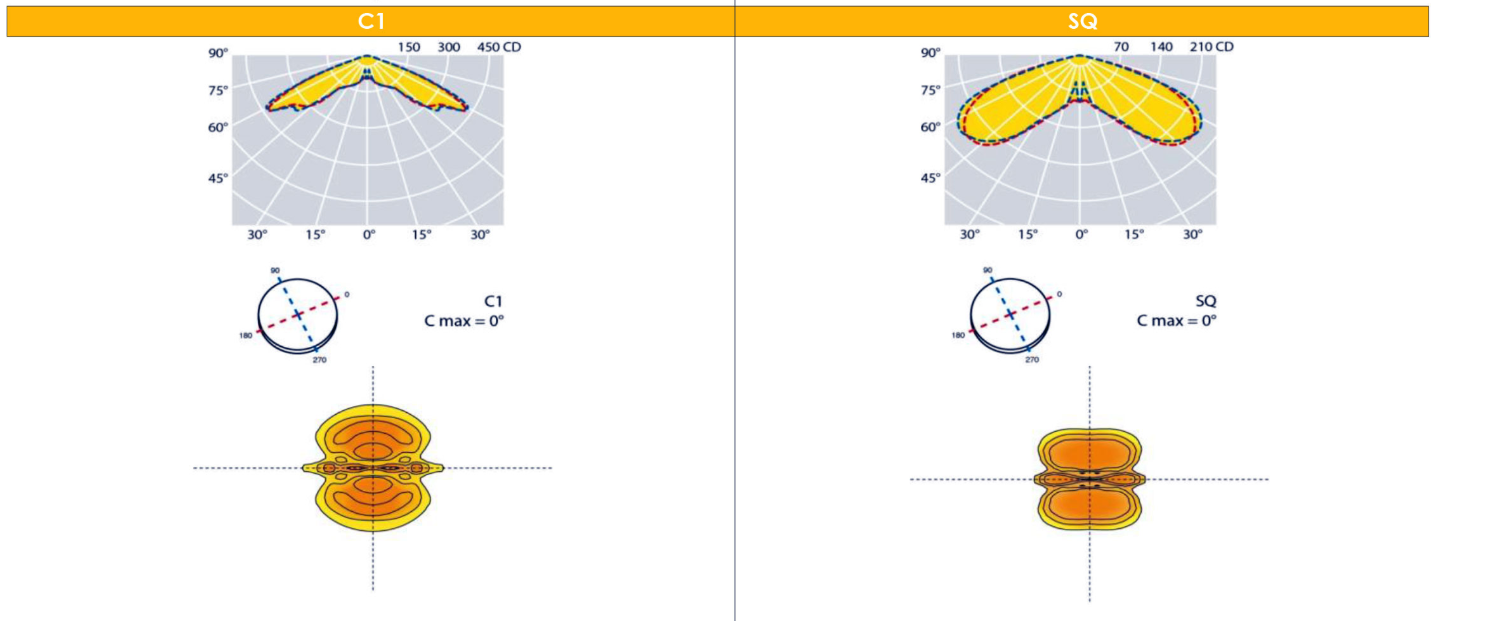

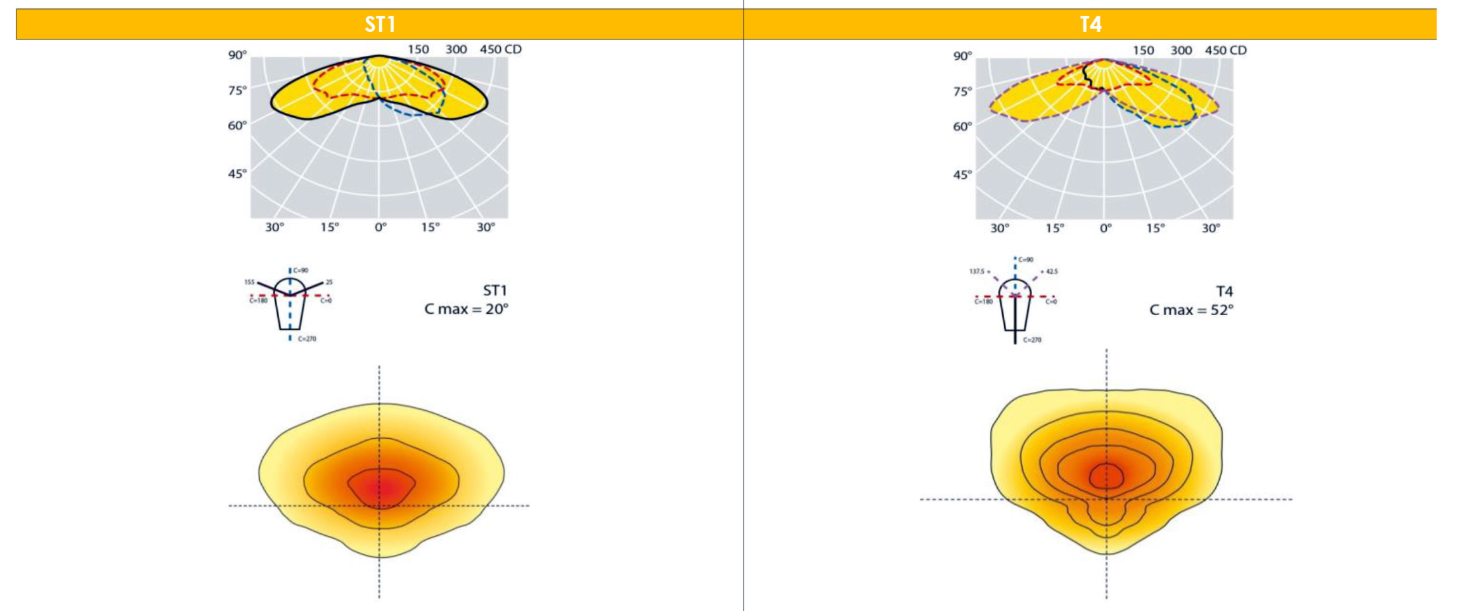

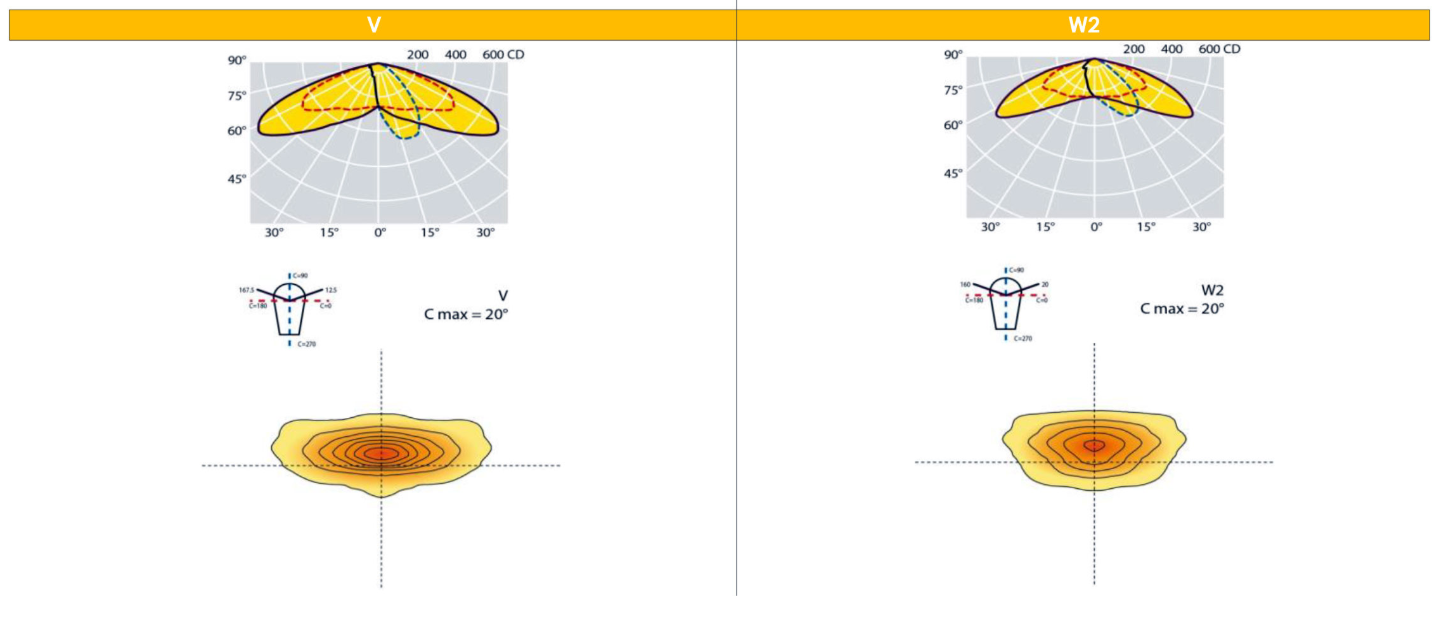

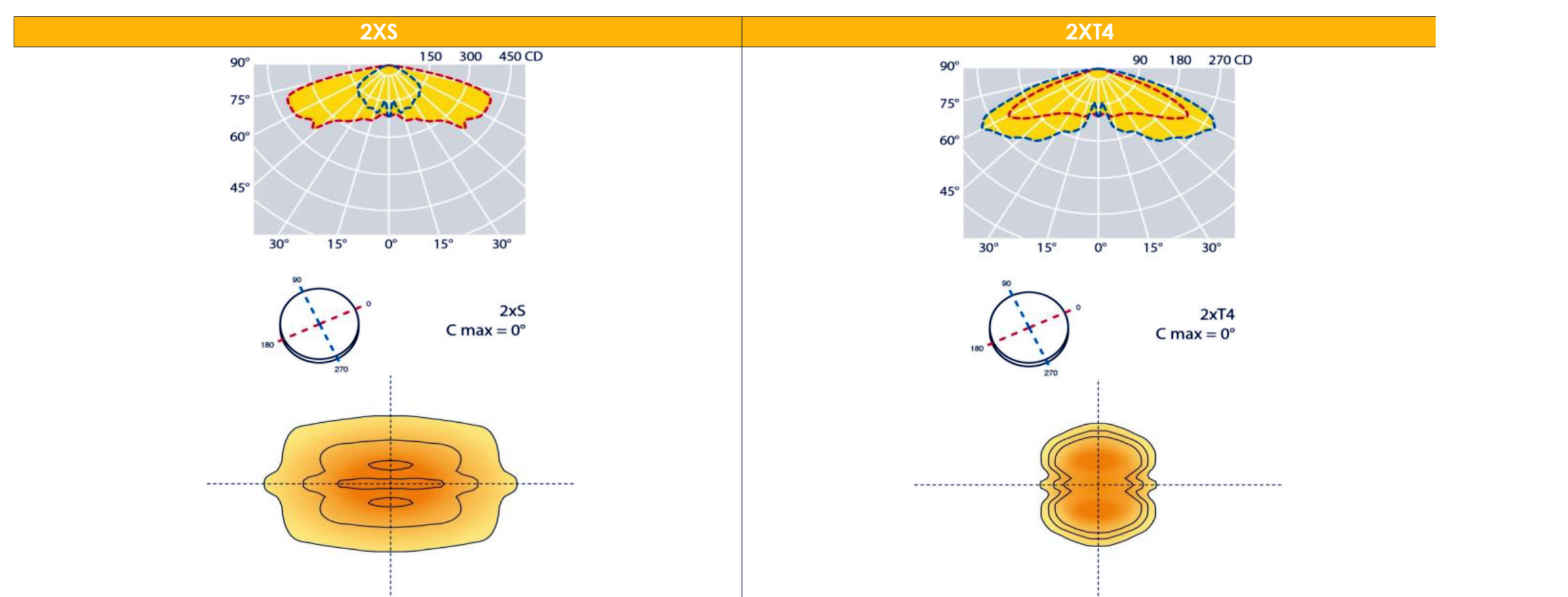

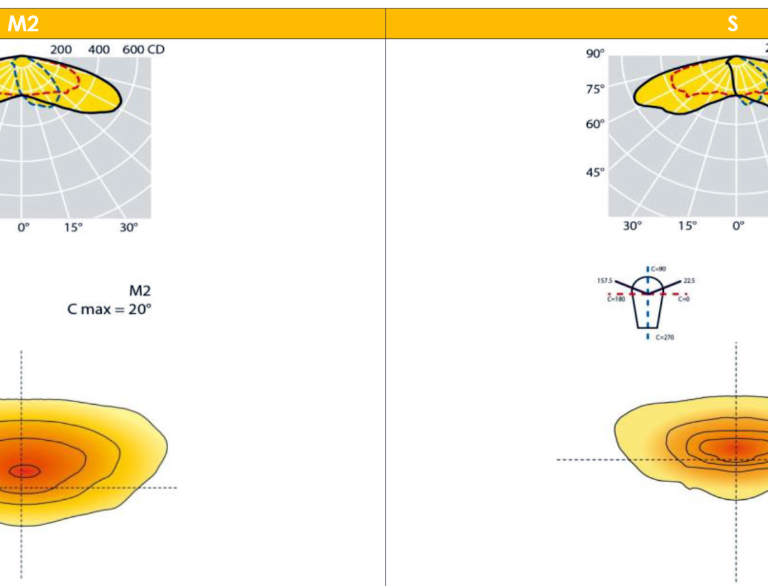

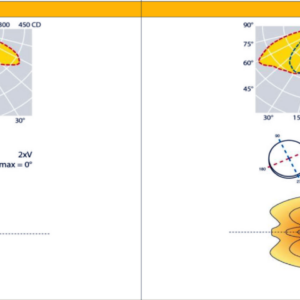

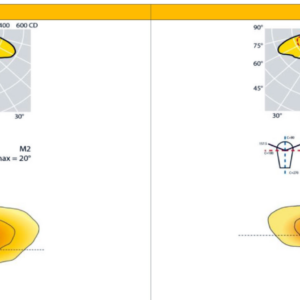

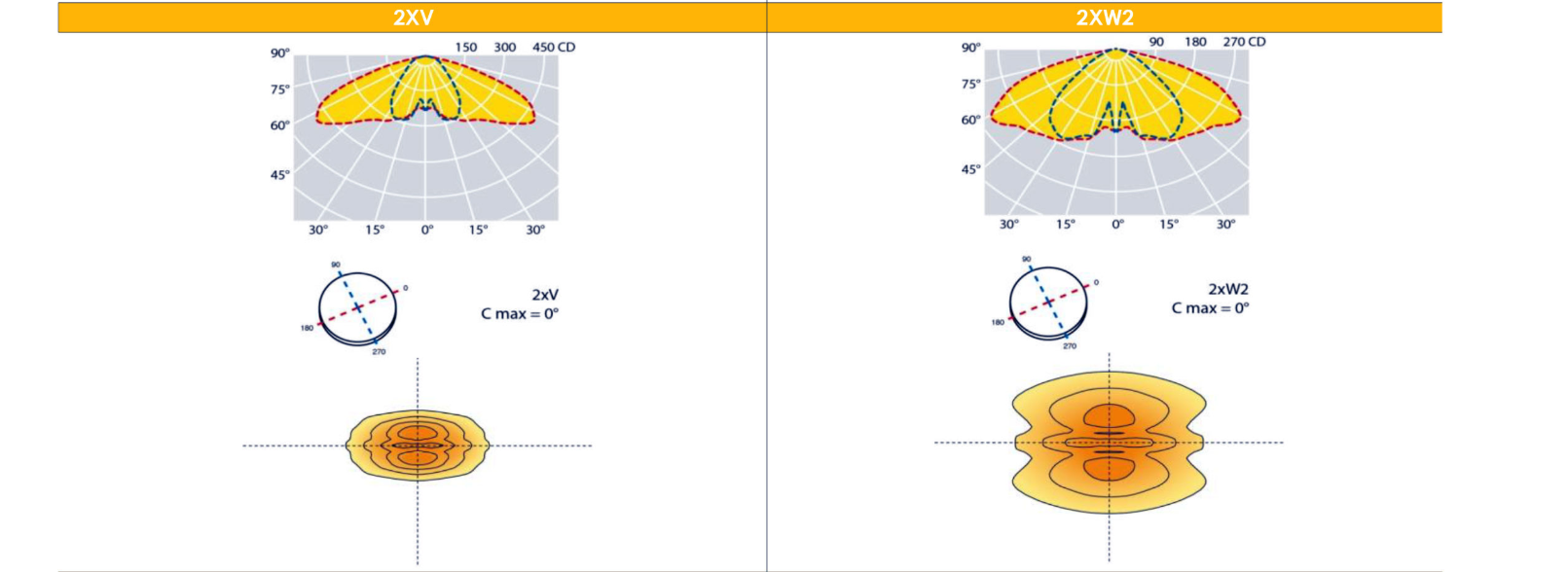

Luminaire variants, including available optics, are shown in the datasheet.
Made in EU
Made in EU
Protection class
Protection class
Version
LED
Voltage
Temperature
Degree of protection (IP)
Impact resistance (IK)
Installation
Technical description
Luminaire body
Diffuser
Surface finish
Lifetime
Lifetime
L90B10>100.000 hodin (ta 35°C: -40°C ÷ +40°C)
L90B10>90.000 hodin (ta55°C: -40°C ÷ +55°C)
On request
On request description
SMART SETTINGS
Automatic dimming via a virtual midnight system with customized profiles tailored to specific requirements.
Astronomical clock
CLO
1–10V: dimming interface using the 1–10V control protocol.
DALI: digital control interface for lighting dimming via DALI.
Luminous flux control via radio waves.
Main voltage dimming – Dimming: this function allows adjustment of the luminous flux by varying the supply voltage delivered by the lighting control system panel.
NEMA SOCKET: 7 pins (ANSI C136.41).
ZHAGA: Luminaire certified with Zhaga D4i interface (ZHAGA Book 18) in the upper position (UP), lower position (DOWN), or combined position (UP+DOWN) for connecting presence and/or motion sensors, or combined solutions.
