ELEKTROSVIT Svatobořice, a. s.
Tradiční výroba průmyslové osvětlovací techniky

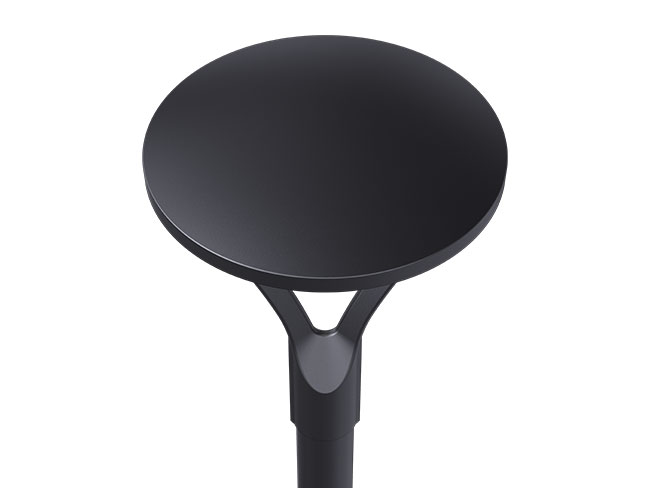

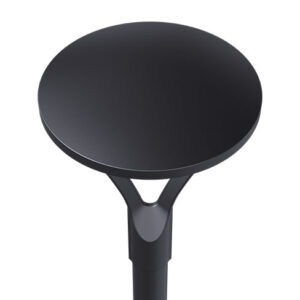

EC GARDEN H
Use: luminaire for lighting pedestrian areas, parks, orchards and other public spaces.
Technical description: the light-active part consists of an LED module equipped with Philips chips
Chromaticity temperature: 3000K, 4000K, 5000K
Made in EU
Made in EU
CE
Version
Version
Surge protection: 6kV (10kV; 20kV on request).
Voltage
220-240V, 50/60Hz
Temperature
-40°C ÷ +30°C
Degree of protection (IP)
IP66
Impact resistance (IK)
IK10
Installation
For 60-76mm diameter mast, installation height 2 - 8 meters (depending on power version).
Emergency version
no
Technical description
Luminaire body
aluminium casting
Surface finish
black powder coating
Lifetime
Lifetime
>50.000h, L90B10
On request
On request description
0/1-10W; DALI; auto dimming (artificial midnight)
Files for download
