ELEKTROSVIT Svatobořice, a. s.
Tradiční výroba průmyslové osvětlovací techniky

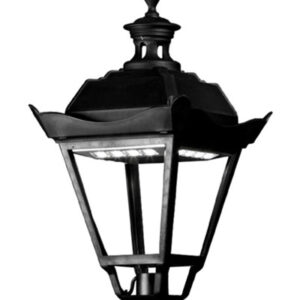

ES LUCERNA OS-1 LED
Use:
Outdoor luminaire designed for pedestrian zones, plazas, parks, gardens, and other public areas.
Technical description:
The housing is made of injection-moulded glass-fibre-reinforced polypropylene, offering excellent UV resistance. It features an integrated, adjustable LED module with a built-in power supply.
Made in EU
Made in EU
CE
Protection class
Protection class
II
Version
LED
LED
Voltage
90 - 300V AC, 50/60Hz
Temperature
-40°C ÷ +40°C
Degree of protection (IP)
IP54
Installation
mounted on the pole Ø60 mm
Emergency version
no
Technical description
Luminaire body
výlisek z polypropylenu se skleněnými vlákny
Surface finish
power coated
Files for download
| Type | Power input [W] / Luminous flux [lm] | Dimensions | Color temperature [K] | Weight [kg] |
|---|---|---|---|---|
| ES LUCERNA OS-1 LED | 39 / 2850 | 670 x 375 | 3500 | 4,2 |
| ES LUCERNA OS-1 LED | 39 / 3850 | 670 x 375 | 5000 | 5,6 |
