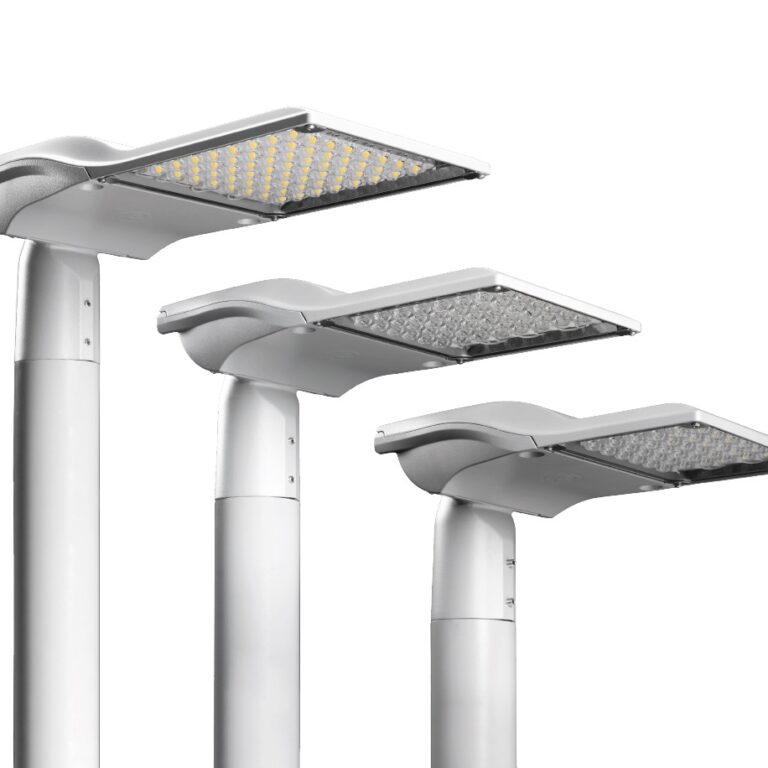

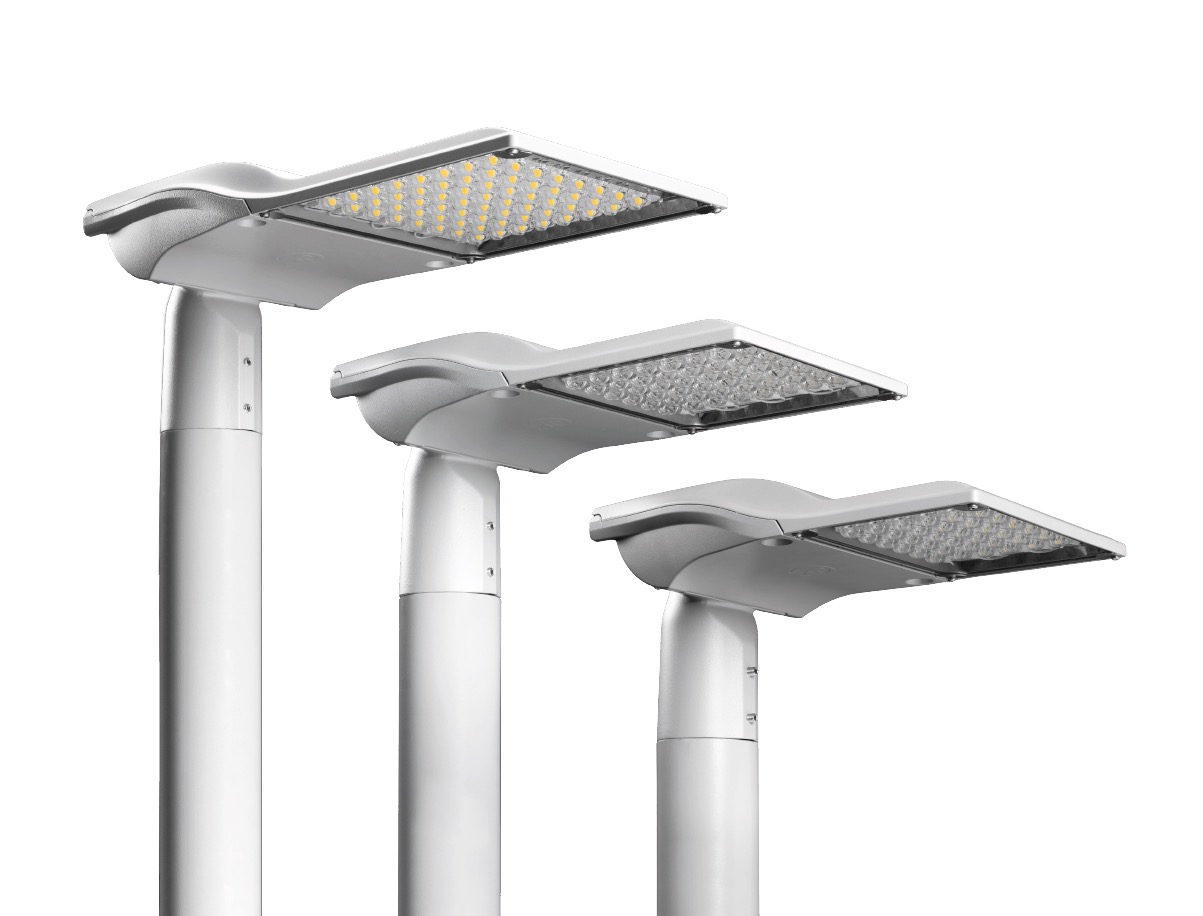

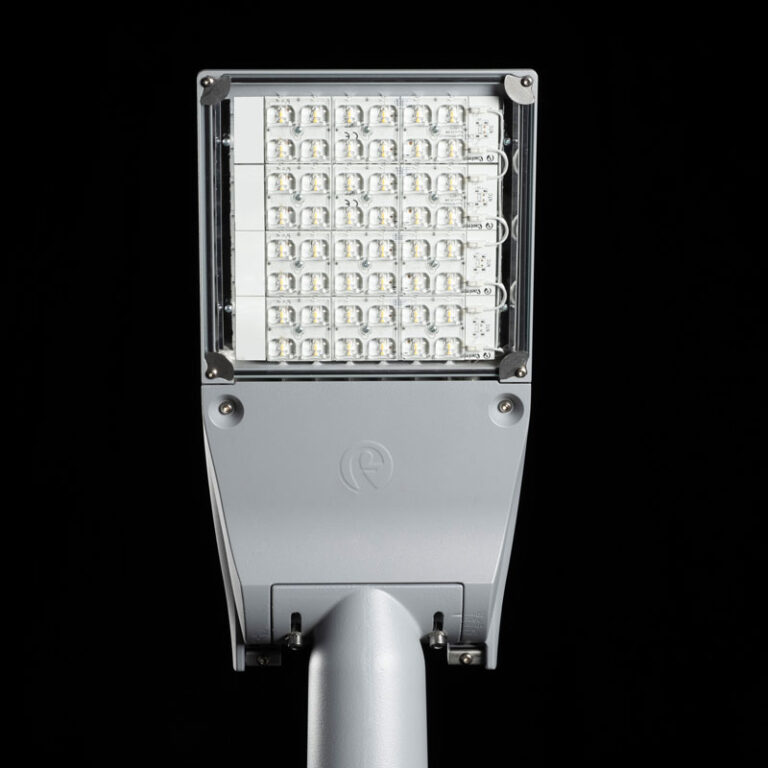

ELECTRA LED series

Home » Products » Street LED luminaires » ELECTRA LED series

Use: Lighting fitting for roads, highways, and outdoor areas

Technical description:

Housing and cover are made of die-cast aluminium, minimum EN 47100 grade, with low copper content and excellent resistance to weathering. The top cover has a smooth, highly aesthetic finish.

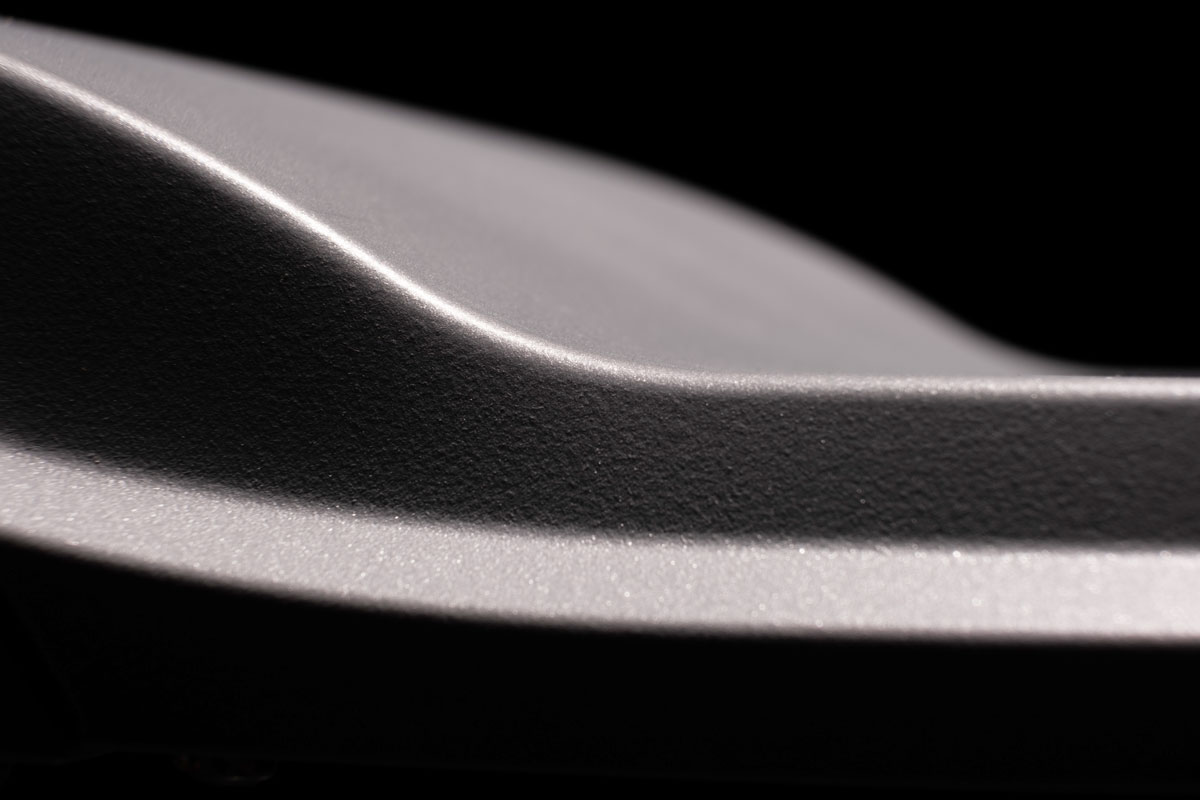

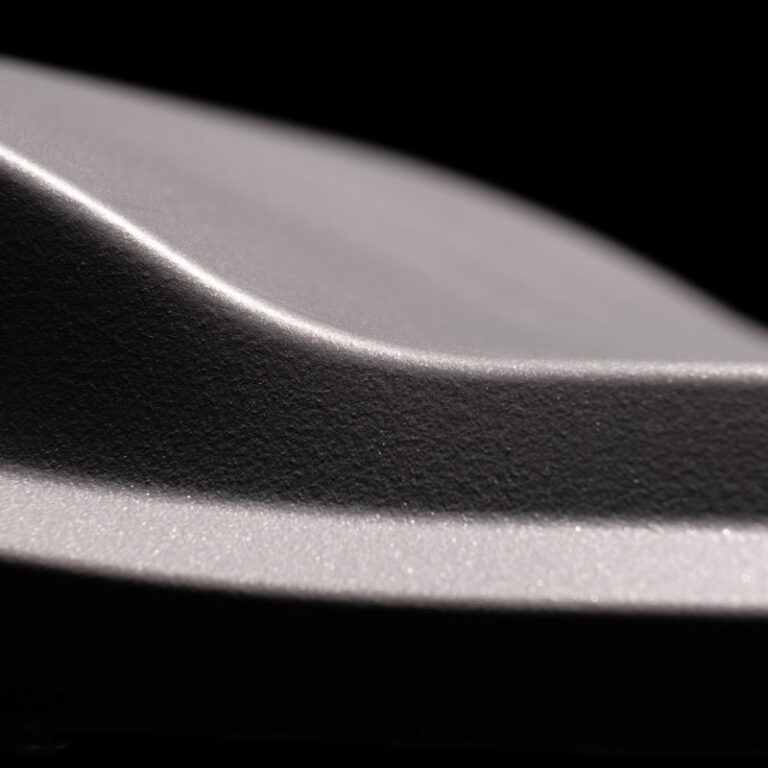

Finish: silver polyester powder coating (RAL 9006), UV resistance per ASTM D4587:2011 and corrosion resistance per EN ISO 9227:2017 (salt spray test), minimum 3000 hours exposure

PTFE pressure compensation filter. Removable gasket made of non-aging rubber. INFINITY protection system: an ultra-clear protective panel made of 4 mm tempered safety glass.

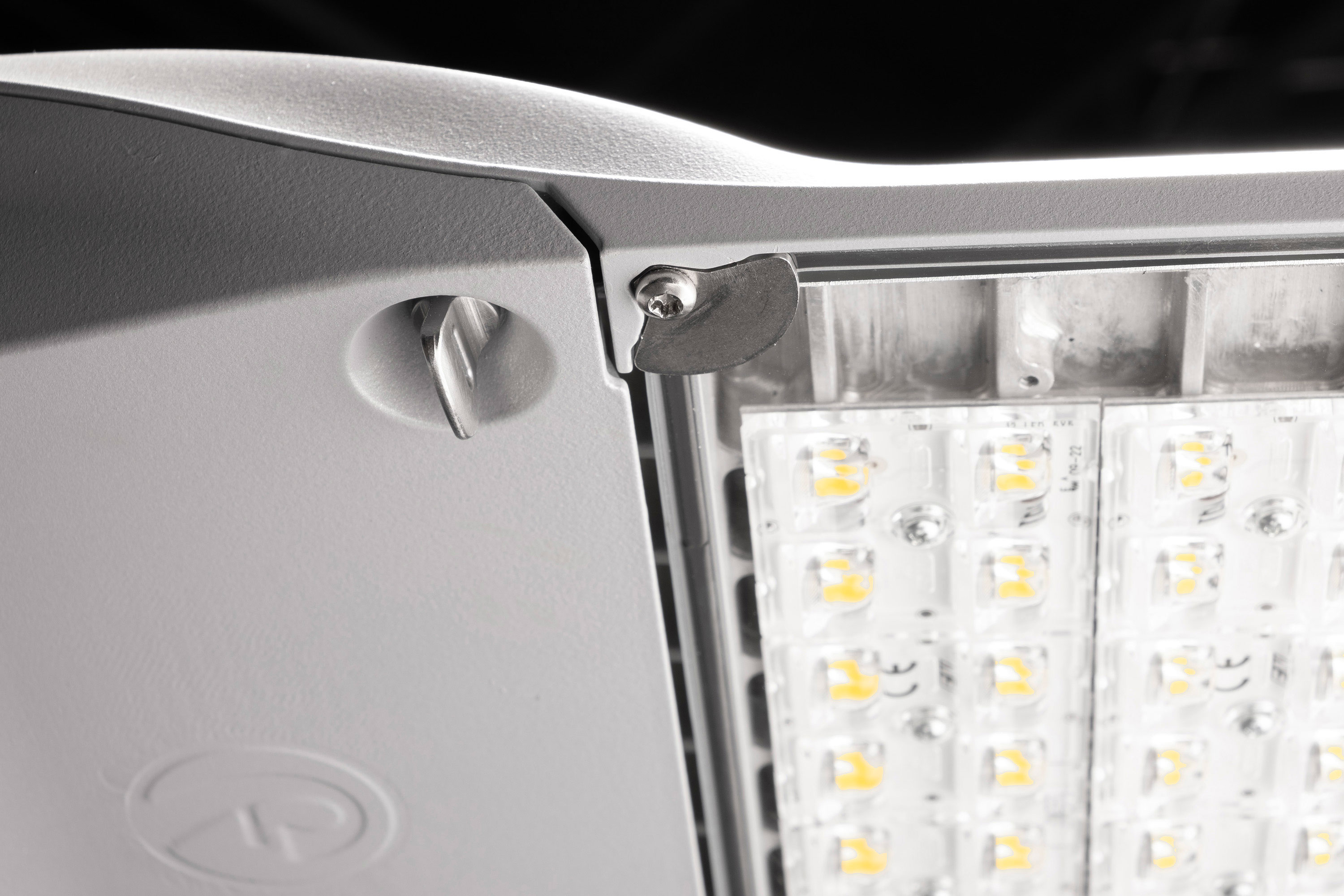

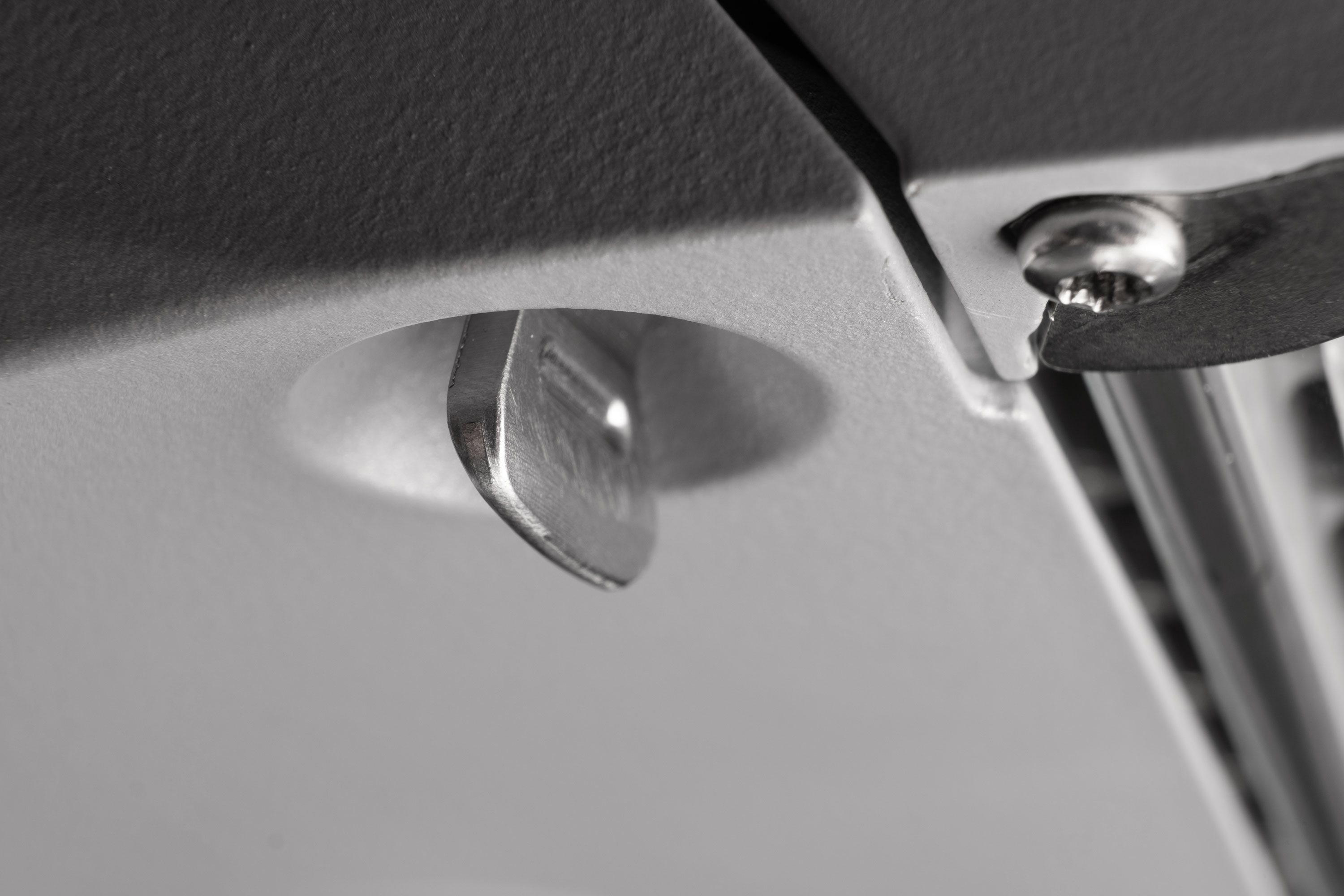

External stainless steel screws

Optical system specifications:

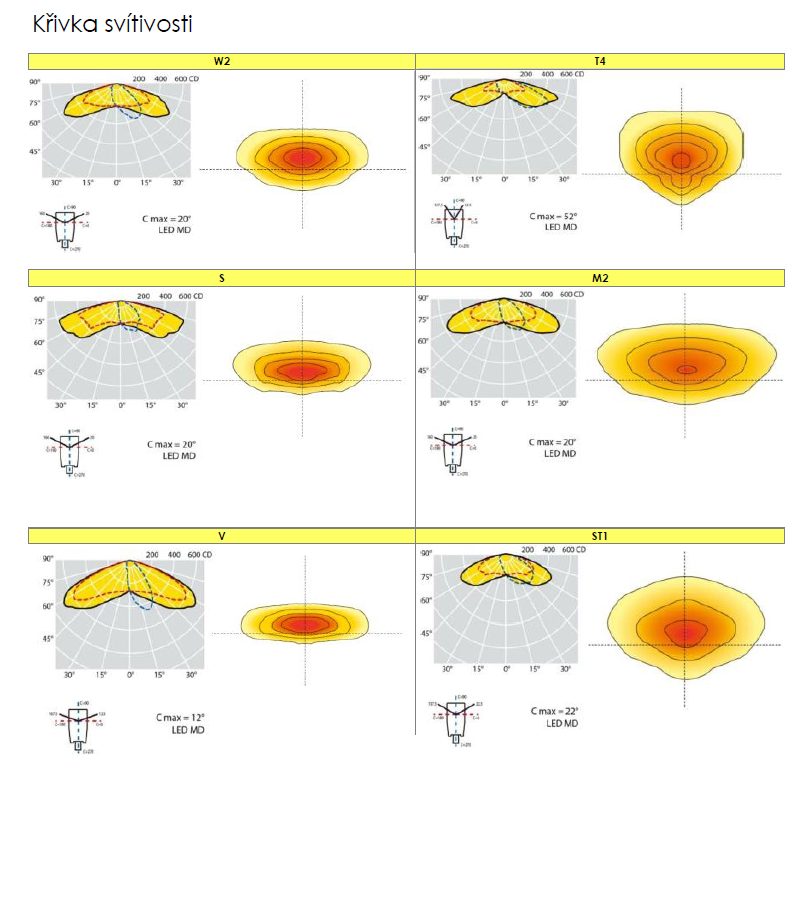

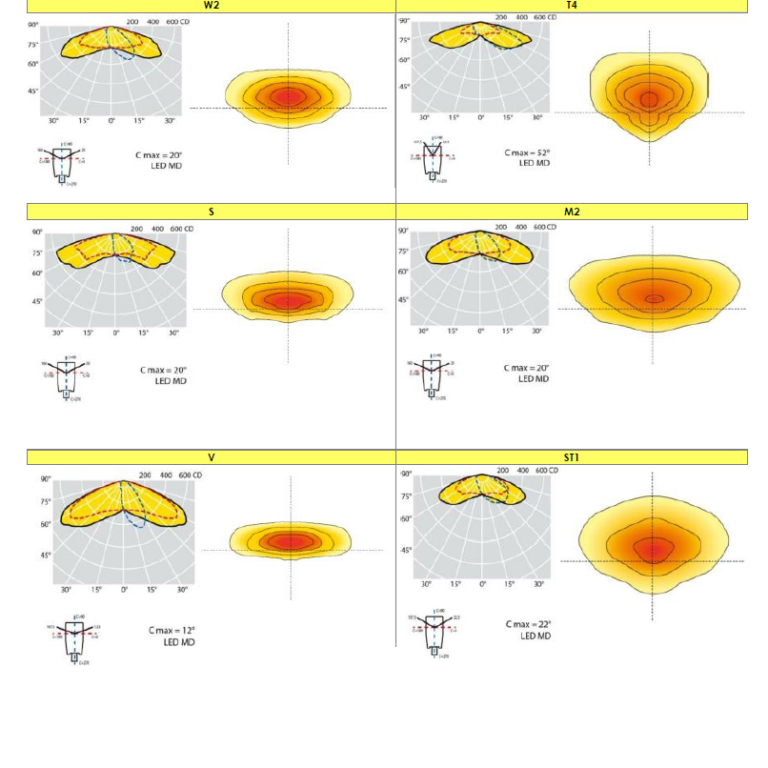

SAFEWAY® optical system, refractive system

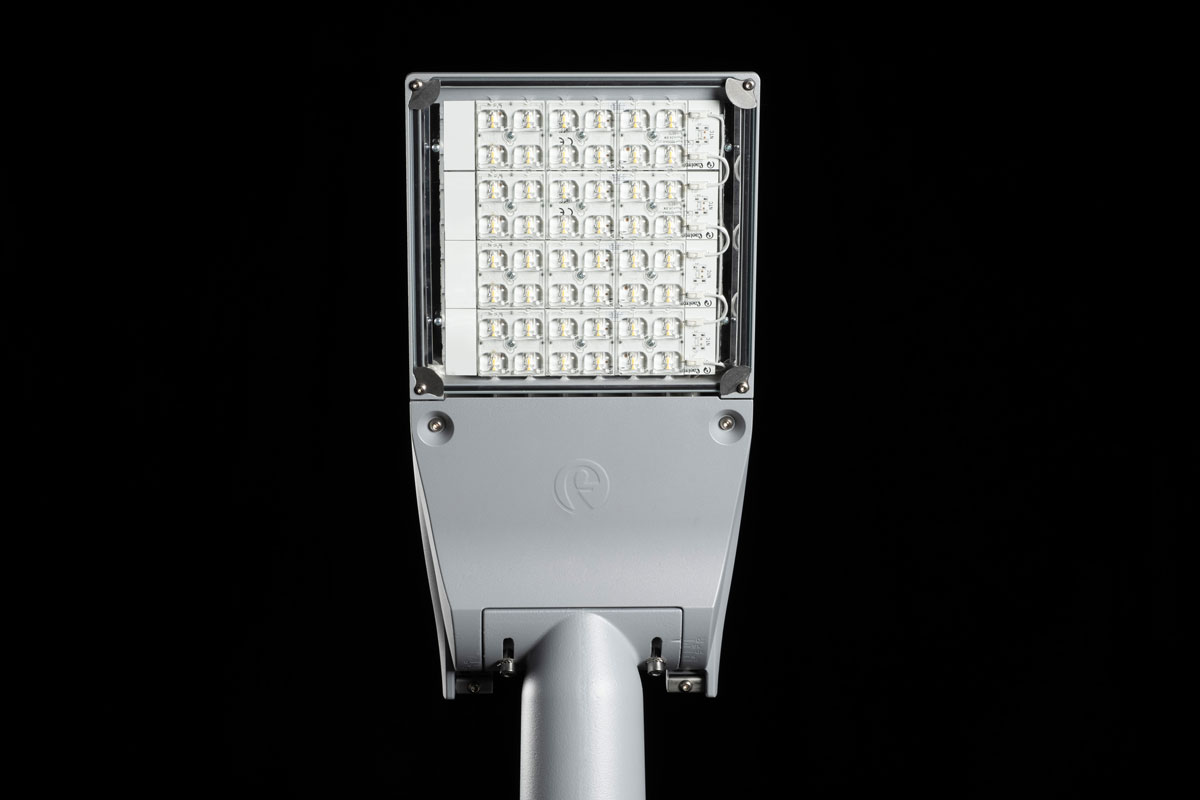

Multi-die LED technology on a die-cast aluminium frame with a high-thermal-dissipation MCPCB (metal-core printed circuit board).
Color temperature: 4000K / 3000K – CRI>70
Street lights are also available upon request with color temperatures ranging from 2700K to 5700K

Made in EU

Version

LED

Voltage

220 - 240 V / 50 - 60 Hz VAC

Temperature

-40°C ÷ +40°C (ta35°C); -40°C ÷ +55°C (ta55°C)

Degree of protection (IP)

IP66

Impact resistance (IK)

IK09

Installation

On a pole

Emergency version

Technical description

Luminaire body

aluminium casting

Diffuser

čiré tvrzené bezpečnostní sklo o tloušťce 4 mm

Surface finish

powder coating RAL 9006

Lifetime

>100.000hodin

On request

On request description

Astronomical clock: this function enables automatic switching of the system on and off based on predefined time schedules
1-10V: Analog dimming interface using the 1–10V protocol
DALI:
Control of luminous flux via transmitted waves
Mains dimming: this function allows control of luminous flux by varying the supply voltage delivered by the lighting control panel.
NEMA socket: 7-pin connector (ANSI C136.41)

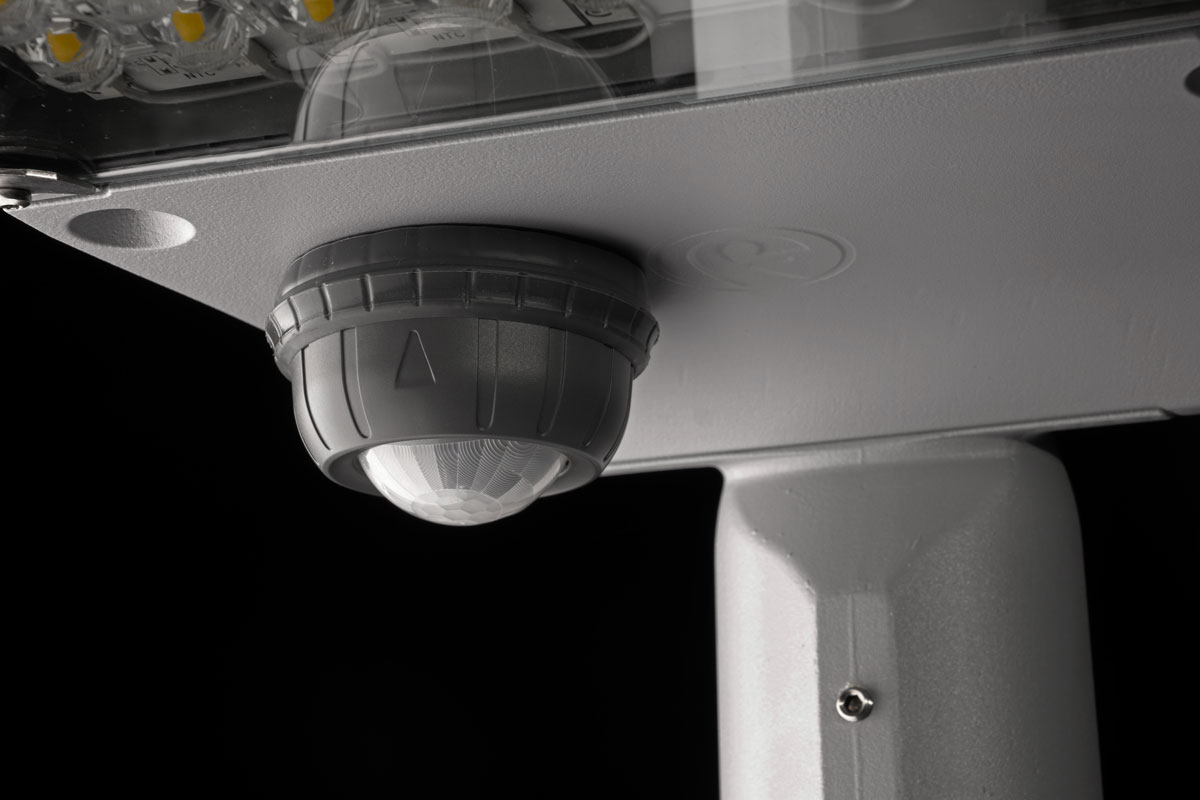

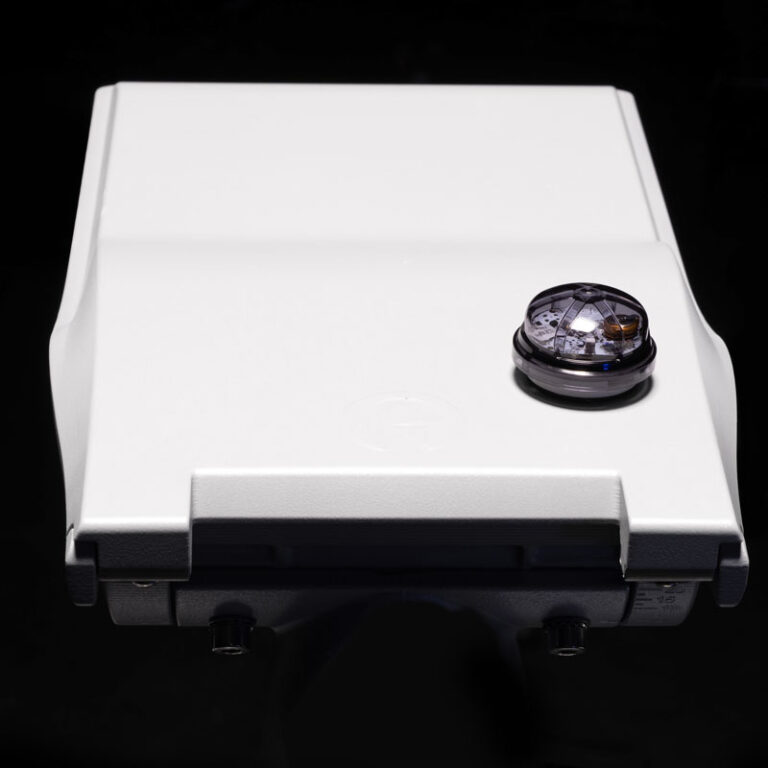

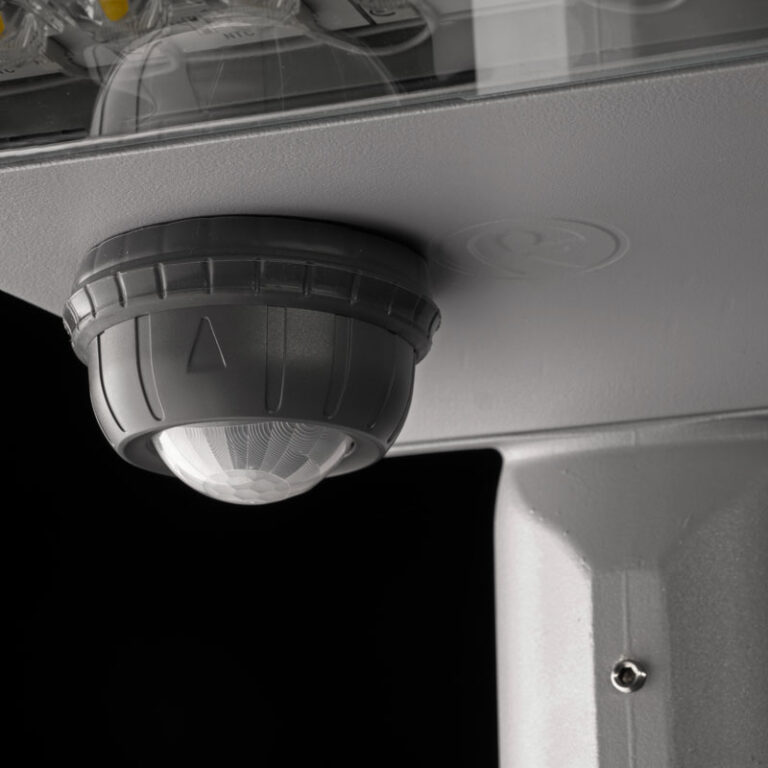

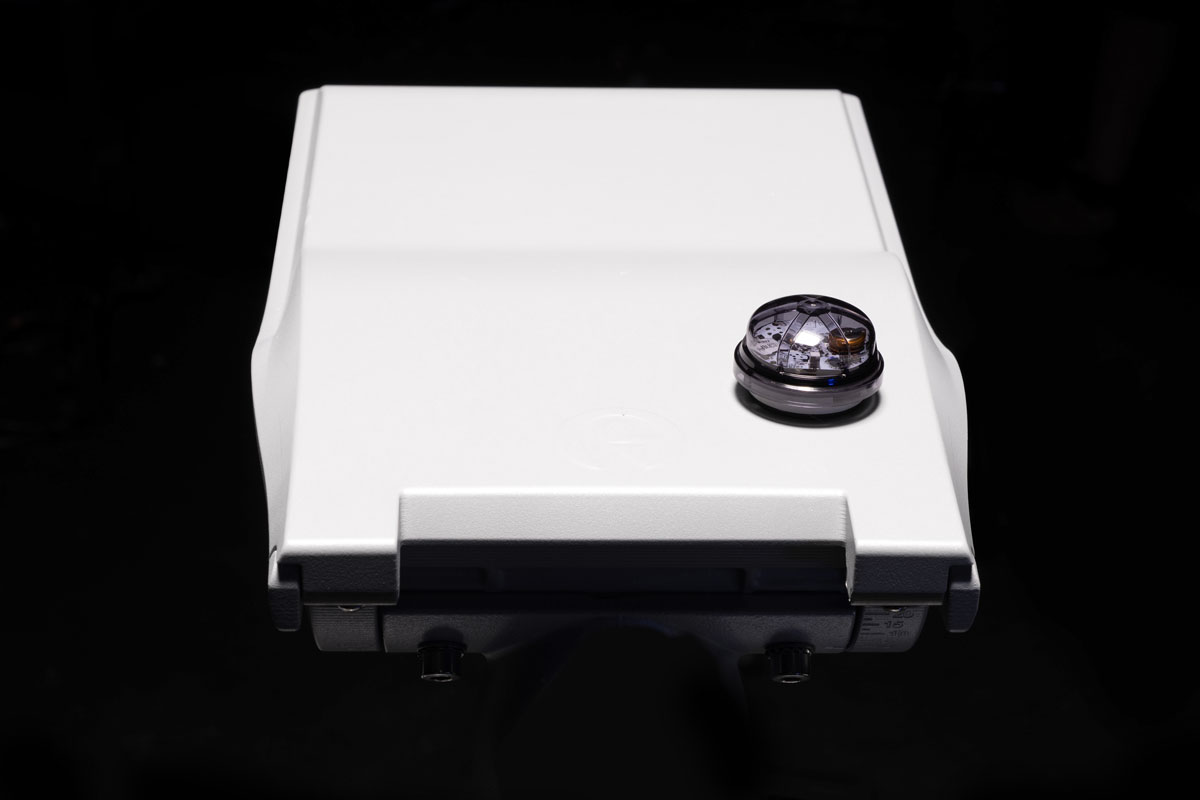

ZHAGA: Street luminaires certified with Zhaga D4i (ZHAGA Book 18) interface, available in top (UP), bottom (DOWN), or combined (UP+DOWN) positions, for connection of presence and/or motion sensors or integrated sensor solutions.
