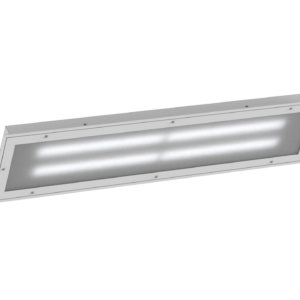

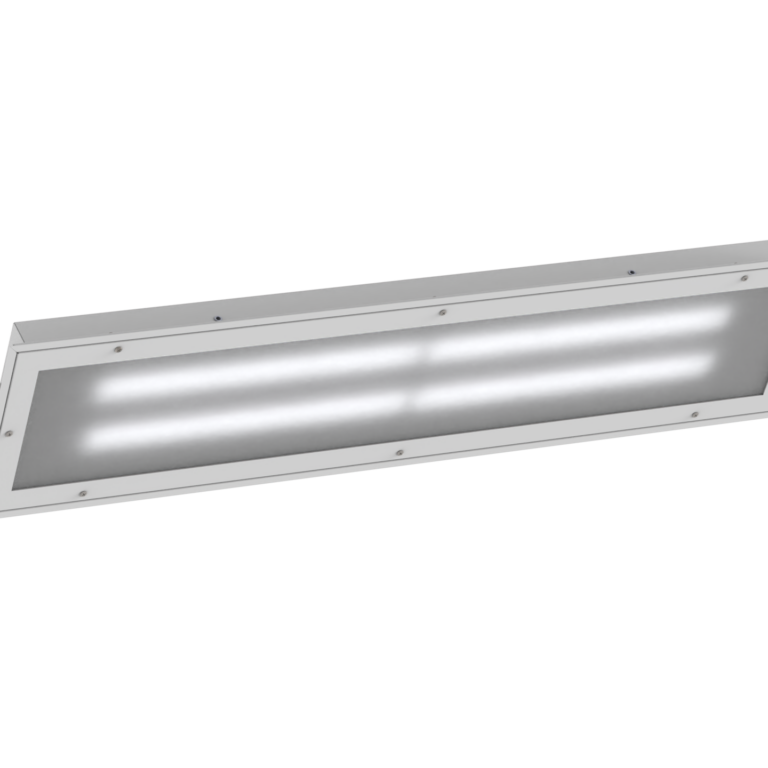

ES EXF390LED

Explosion-proof luminaire for lighting of indoor and outdoor industrial areas with explosion hazard of gases, vapours and dusts.

Technical description:

Suitable for lighting paint shops. The luminaire is fitted with two cable glands on one side.

Classification

Zone 1/21

II 2G Ex eb mb op is IIC T5 Gb
II 2D Ex tb op is IIIC T70°C Db

LED

Version

Surge protection: 1kV (LN) 2kV (L-PE), optional 4kV for 35E

Voltage

110-254V, 50-60Hz; 220-240V, 0Hz (25E), 220-240V 50-60Hz, 220-240V 0Hz (35E)

Temperature

-40°C ÷ +55°C

Degree of protection (IP)

IP65

Impact resistance (IK)

IK08 (GL), IK10 (PC)

Installation

Recessed (RC) or surface-mounted (SF) ceiling installation using adjustable brackets.

Emergency version

yes

Luminaire body

stainless steel

Diffuser

tempered glass (GL), polycarbonate (PC)

Surface finish

prášková barva

Connection

end-wired

Max. cable cross-section

2,5mm2

Cable glands (material)

plastic (as standard), metal

>70.000h L80B10

>100.000h L70B10

On request description

Available in a version for use with a central battery system (ZB) and a version with a 3-hour emergency backup module (A3).

Power supply 220-240V, 0/50-60Hz (35E)

Type	Power input [W]	Luminous efficiency [lm/W]	Luminous flux [lm]*	Ambient temperature
ES EXF390LED-0600-FA4-1	31,2	130	4047	-40°C ÷ +55°C
ES EXF390LED-0600-FA4-2	37,4	130	4871	-40°C ÷ +55°C
ES EXF390LED-0600-FA4-3	43,7	130	5680	-40°C ÷ +55°C
ES EXF390LED-1200-FA2-1	15,6	125	1957	-40°C ÷ +55°C
ES EXF390LED-1200-FA2-2	18,7	126	2355	-40°C ÷ +55°C
ES EXF390LED-1200-FA2-3	21,9	125	2746	-40°C ÷ +55°C
ES EXF390LED-1200-FA4-1	31,2	125	3913	-40°C ÷ +55°C
ES EXF390LED-1200-FA4-2	37,4	126	4710	-40°C ÷ +55°C
ES EXF390LED-1200-FA4-3	43,7	126	5492	-40°C ÷ +55°C
