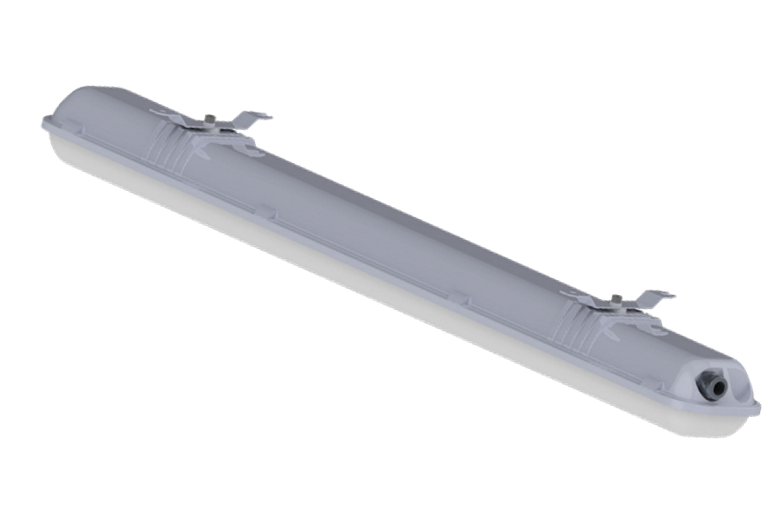

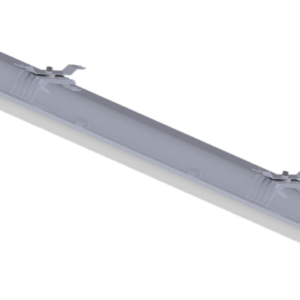

LINEX PLA LED
Explosion-proof light fitting for the illumination of indoor industrial spaces with a danger of gas, vapour and dust explosion.
Technical description:
The light fitting body is made of glass-fibre reinforced polyester (GRP). The diffuser is supplied as standard in UV stabilised polycarbonate (PC). The caps are made of stainless steel. The mounting brackets are made of powder-coated sheet steel. The luminaire is equipped with a reflector made of sheet steel. The luminaire is manufactured as a 3-phase through luminaire. When the luminaire is used as an end luminaire, the free cable gland is blinded with an Ex-plug. The maximum cross-section of the connecting wires is 2,5mm2.
Classification
Zone 2/22
II 3D Ex tc IIIC T60°C Dc
Made in EU
Made in EU
Protection class
Protection class
Version
LED
Version
Voltage
Temperature
Degree of protection (IP)
Installation
Box
Emergency version
Technical description
Luminaire body
Diffuser
Surface finish
Connection
Max. cable cross-section
Cable glands (material)
Cable glands (ø)
Lifetime
Lifetime
120.000 hours, L80B20
On request
On request description
Protective cover PC, stainless steel caps, order number 30543, blinding plug HSK-V-Ex M20x1,5
Use
| Type | Power [W] / Luminous flux [lm] | Light output [lm/W] | Temperature class | Color temperature [K] | CRI | Weight [kg] |
|---|---|---|---|---|---|---|
| 591 13 01 | 70 / 10 554 | 152 | T6 | 4000 | >80 | 5,5 |
| 591 13 02 | 55 / 9 171 | 168 | T6 | 4000 | >80 | 5,5 |
| 591 13 03 | 40 / 6 692 | 167 | T6 | 4000 | >80 | 5,5 |
| 591 13 04 | 25 / 4 061 | 163 | T6 | 4000 | >80 | 3,5 |
| 591 13 05 | 15 / 2 482 | 167 | T6 | 4000 | >80 | 3,5 |
| Type with emergency unit | Operating time [h] | Power input [W] | Ambient temperature |
|---|---|---|---|
| 591 13 xx EM | 3 | 4,5 | +5°C ÷ +50°C |
| Type | L | L1 | B | B1 | H |
|---|---|---|---|---|---|
| 591 13 01 | 1300 | 800 | 190 | 160 | 129 |
| 591 13 02 | 1300 | 800 | 190 | 160 | 129 |
| 591 13 03 | 1300 | 800 | 190 | 160 | 129 |
| 591 13 04 | 700 | 450 | 190 | 160 | 129 |
| 591 13 05 | 700 | 450 | 190 | 160 | 129 |
