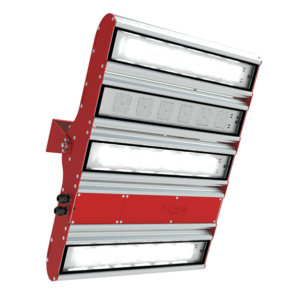

ES EXL450LED-A3
Explosion-proof luminaire for lighting of areas with explosion hazard of gases, vapours of flammable liquids, dusts and fibres.
The luminaire is produced as standard with a CRI >of 70 (CRI >of 80 – on request) and a chromaticity temperature of 4000K (6500K on request).
Classification
Zone 2/22
II 2D Ex tb IIIC T80°C ... 105°C Db
II 3G Ex ec IIC T6...T4 Gc
II 3G Ex ec IIC T6...T4 Gc
Made in EU
Made in EU
CE
Version
LED
LED
Voltage
220-240V 50-60Hz (24E), 230-305V 50-60Hz, 230-305V 0Hz (35E)
Temperature
-20°C ÷ +45°C
Control
1
Degree of protection (IP)
IP66, IP67
Impact resistance (IK)
IK09, IK10
Installation
using the holder
Emergency version
yes
Technical description
Luminaire body
anodized aluminium
Diffuser
tempered glass (GL), polycarbonate (PC)
Surface finish
power coated
Connection
end-wired
Max. cable cross-section
2,5mm2, 6 mm2
Cable glands (material)
plastic (as standard), metal
Cable glands (ø)
ø20
Lifetime
Lifetime
>50.000h L80B10
>70.000h L70B10
On request
On request description
protective basket (PRG), breathing plugs (VENT), three-phase design, DALI (DA)
