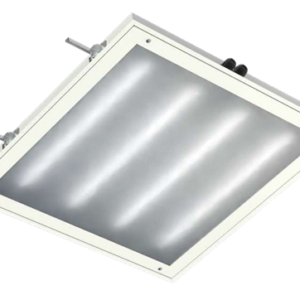

ES EXL390LED
Explosion-proof light fitting for the illumination of indoor and outdoor industrial spaces with a danger of gas, vapour and dust explosion.
Classification
Zone 2/22
II 2D Ex tb IIIC T70°C Db
II 3G Ex ec IIC T4 Gc
II 3G Ex ec IIC T4 Gc
Made in EU
Made in EU
CE
Version
LED
LED
Version
Surge protection: 1kV (LN) 2kV (L-PE), optional 4kV for 35E
Voltage
220-240V, 50-60Hz (34E), 220-240V 50-60Hz, 220-240V 0Hz (35E)
Temperature
-40°C ÷ +50°C
Control
DALI-2 (DA)
Degree of protection (IP)
IP65
Impact resistance (IK)
IK08 (GL), IK10 (PC)
Installation
Surface-mounted (SF) or recessed (RC).
Emergency version
no
Technical description
Luminaire body
stainless steel
Diffuser
tempered glass, opal polycarbonate (PC)
Surface finish
prášková barva
Max. cable cross-section
2,5mm2
Cable glands (material)
plastic (as standard), metal
Lifetime
Lifetime
>70.000h L80B10
>100.000h L70B10
On request
On request description
Version with a 3-hour emergency power module (A3) or adapted for supply from a central battery system (ZB). Optionally, the luminaire can be equipped with a power supply featuring a DALI-2 interface (DA).
Use
Files for download
| Type | Power input [W] | Power [lm/W] | Luminous flux [lm] | Ambient temperature |
|---|---|---|---|---|
| ES EXL390LED-0600-E4-1 | 35,0 | 132 | 4636 | -40°C ÷ +50°C |
| ES EXL390LED-0600-E4-3 | 47,0 | 133 | 6265 | -40°C ÷ +50°C |
| ES EXL390LED-1200-E3-1 | 27,1 | 1117 | 3160 | -40°C ÷ +50°C |
| ES EXL390LED-1200-E3-1 | 36,6 | 117 | 4270 | -40°C ÷ +50°C |
| ES EXL390LED-1200-E6-1 | 52,0 | 124 | 6445 | -40°C ÷ +50°C |
| ES EXL400LED-1200-E6-3 | 70,5 | 124 | 8710 | -40°C ÷ +50°C |
The luminaire configuration can be found in the data sheet.
