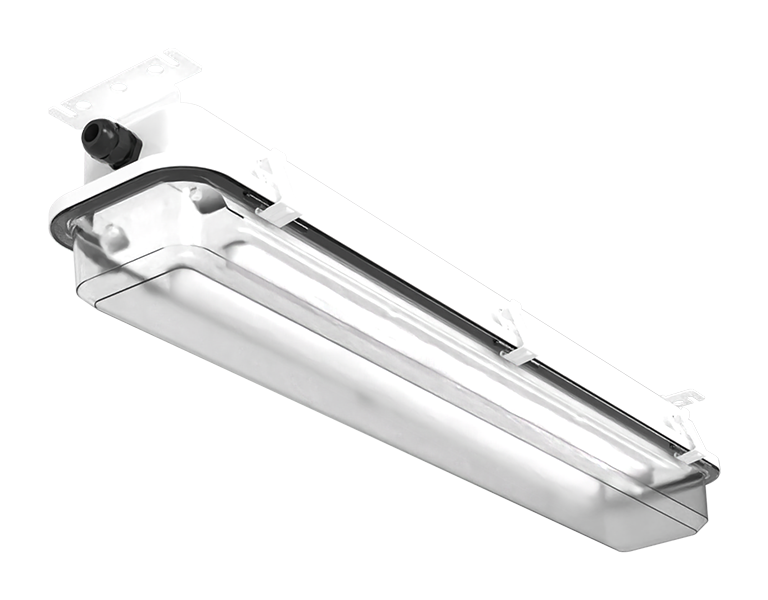

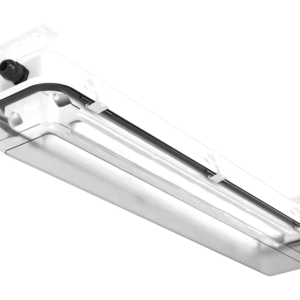

ES EXF300LED
Explosion-proof light fitting for the illumination of indoor and outdoor industrial spaces with a danger of gas, vapour and dust explosion.
Classification
Zone 1/21
II 2G Ex eb mb IIC T5 Gb
II 2D Ex tb IIIC T55°C Db
II 2D Ex tb IIIC T70°C Db
II 2D Ex tb IIIC T55°C Db
II 2D Ex tb IIIC T70°C Db
Made in EU
Made in EU
CE
Version
LED
LED
Version
Surge protection: 2kV
Voltage
110-254V, 50-60Hz; 220-250V, 0Hz
Temperature
-40°C ÷ +60°C
Control
DALI-2 (DA)
Degree of protection (IP)
IP66, IP67
Impact resistance (IK)
IK10
Installation
On the wall, ceiling, by holders
Emergency version
no
Technical description
Luminaire body
stainless steel
Diffuser
opal polycarbonate (PC)
Surface finish
power coated
Connection
through-wired (as standard), end-wired
Max. cable cross-section
2,5mm2
Cable glands (material)
plastic (as standard), metal
Cable glands (ø)
ø20, ø25
Lifetime
Lifetime
>100.000h L80B50
On request
On request description
Available in an optional version for central battery operation (ZB) or with a DALI-2 control interface (DA).
Use
Files for download
