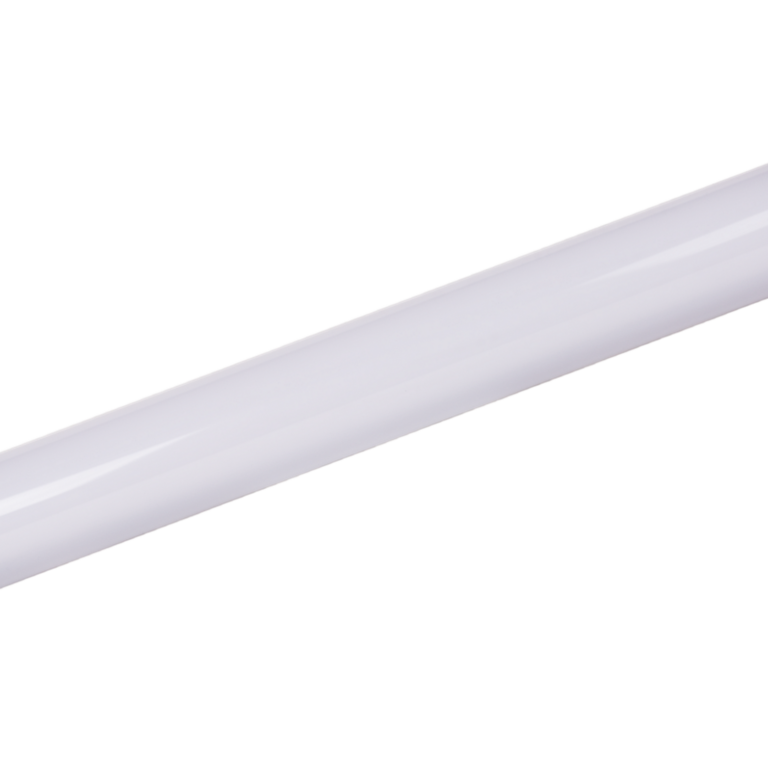

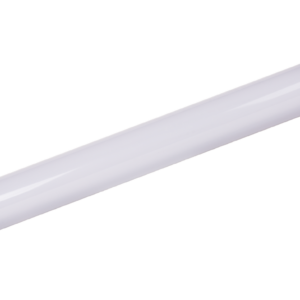

MUSTANG
Luminaire for lighting industrial indoor and outdoor spaces such as halls, warehouses, workshops, corridors, cellars, and garages.
Technical description:
The luminaire body consists of a polycarbonate tube. The luminaire has a high protection rating (IP69K) and impact resistance (IK10). It is available with a color temperature of 3000K or 4000K.
Made in EU
Made in EU
CE
Version
LED
LED
Voltage
220-240V, 50-60Hz
Temperature
-40°C ÷ +55°C
Control
1
Degree of protection (IP)
IP69K
Impact resistance (IK)
IK10
Installation
Using clamps, the luminaire can be suspended on a cable, mounted directly on the ceiling or wall, or attached to a pipe using a special adapter.
Emergency version
no
Technical description
Luminaire body
polished aluminum
Diffuser
polycarbonate (PC)
Surface finish
none
Connection
end-wired, průchozí
Cable glands (ø)
PG11/M16
Lifetime
Lifetime
>50.000hod, L70B50
On request
On request description
DALI, steel clamp with rubber coating, stainless steel clamp, cable suspension, 3-pole quick connector, 5-pole quick connector, adapter for pipe mounting.
Use
Files for download
| Type | Power output [W] / Luminous flux [lm] | Dimension L x d [mm] | Temperature colour [K] |
|---|---|---|---|
| MUSTANG MU113 | 13 / 997 | 685 x 100 | 3000 |
| MUSTANG MU114 | 13 / 1037 | 685 x 100 | 4000 |
| MUSTANG MU123 | 18 / 1626 | 685 x 100 | 3000 |
| MUSTANG MU124 | 18 / 1714 | 685 x 100 | 4000 |
| MUSTANG MU213 | 24 / 1993 | 1300 x 100 | 3000 |
| MUSTANG MU214 | 24 / 2140 | 1300 x 100 | 4000 |
| MUSTANG MU223 | 36 / 3252 | 1300 x 100 | 3000 |
| MUSTANG MU224 | 36 / 3428 | 1300 x 100 | 4000 |
| MUSTANG MU313 | 29 / 2488 | 1600 x 100 | 3000 |
| MUSTANG MU314 | 29 / 2675 | 1600 x 100 | 4000 |
| MUSTANG MU323 | 45 / 4065 | 1600 x 100 | 3000 |
| MUSTANG MU324 | 45 / 4285 | 1600 x 100 | 4000 |
