HALSPOT II LED modular

Home » Products » Industrial light fitting » HALSPOT II LED modular

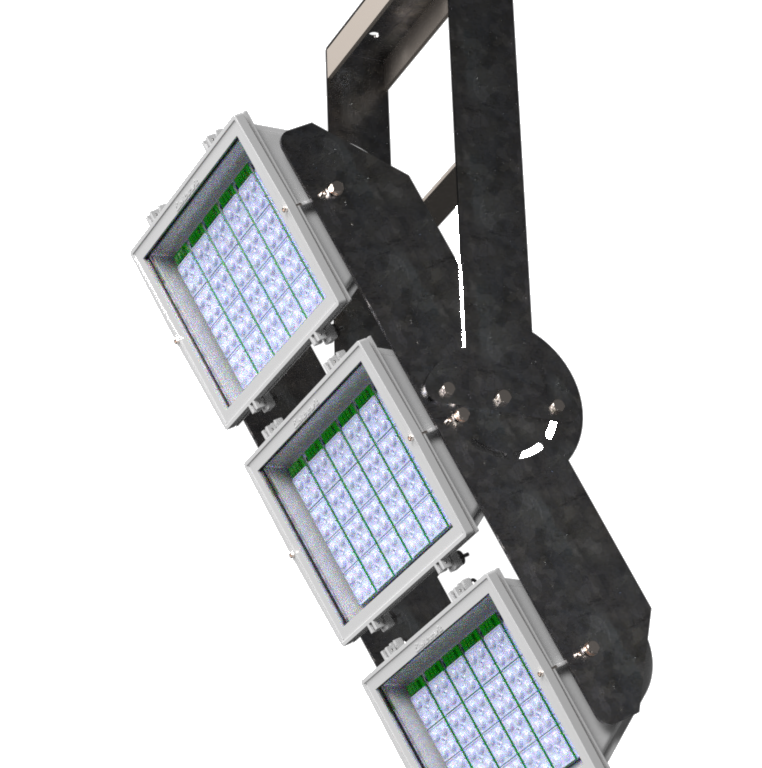

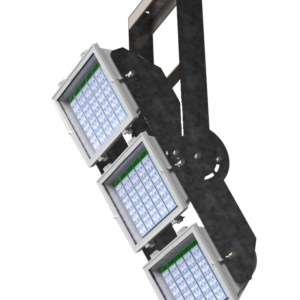

Luminaire for illumination of industrial and sports halls and areas, stadiums, public spaces, monuments, building facades, advertising billboards, construction sites, parking lots, etc.

Technical description:
Inside the luminaire there is a built-in LED module. A steel bracket allows the headlamp to be rotated to the desired position. The light fitting is manufactured as standard with a plastic cable gland and a color temperature of 4000K.

Made in EU

Protection class

Version

LED

Version

The luminaires are equipped with a self-resetting thermal fuse and surge protection up to 10kV.

Voltage

198 - 264V AC, 176 - 280V DC

Temperature

-40°C ÷ +50°C (791 04 2x), -40°C ÷ +55°C (791 04 3x)

Control

DALI-2

Degree of protection (IP)

IP66

Installation

On the ceiling, on the wall or on another solid substrate (structure) ensuring a firm connection.

Emergency version

Technical description

Luminaire body

AlSi alloy castings

Diffuser

tempered glass

Surface finish

prášková barva

Connection

end-wired

Max. cable cross-section

2,5mm2

Cable glands (material)

plastic (as standard), metal

Cable glands (ø)

ø20

Lifetime

100.000hours, L90B10

Use

Files for download

Product Datasheet - file

Type	Power [W] / Luminous flux [lm]	Light output [lm/W]	Angle of beam [°]	Color temperature [K]	CRI	Weight [kg]
793 04 21	2 x 250 / 65 700	131	120 / 60 / Asymmetric	4000 (standard), 5000, 5700, 6500	>80	40
793 04 22	2 x 200 / 53 850	135	120 / 60 / Asymmetric	4000 (standard), 5000, 5700, 6500	>80	40
793 04 23	2 x 150 / 42 300	139	120 / 60 / Asymmetric	4000 (standard), 5000, 5700, 6500	>80	40
793 04 31	3 x 250 / 98 550	131	120 / 60 / Asymmetric	4000 (standard), 5000, 5700, 6500	>80	55
793 04 32	3 x 200 / 80 750	135	120 / 60 / Asymmetric	4000 (standard), 5000, 5700, 6500	>80	55
793 04 33	3 x 150 / 63400	139	120 / 60 / Asymmetric	4000 (standard), 5000, 5700, 6500	>80	55
