FARMER I LED, low glass
Light fitting for the illumination of indoor and outdoor industrial spaces.
Technical description:
The inorganic glass cover with seal and protective basket are fixed to the body with four metal caps. There is a LED module built inside the light fitting and it is comprised of a board fitted with LEDs and a power supply. According to the individual types, the light fitting includes: an AlSi terminal box, a steel pipe, or a galvanized steel sheet boom. The light fitting is made as a through light fitting and is provided with two cable outlets.
Made in EU
Made in EU
Protection class
Protection class
Version
LED
Version
version with a protective steel basket – version „K“,
version with a protective polycarbonate basket and stainless-steel caps – version „p“.
Light fittings are provided with a self-resetting thermal fuse and surge guard up to 3 kV.
Voltage
Temperature
Degree of protection (IP)
Installation
Emergency version
Technical description
Luminaire body
Diffuser
Surface finish
Connection
Max. cable cross-section
Cable glands (material)
Cable glands (ø)
Lifetime
Lifetime
50.000 hodin, L80B20
On request
On request description
metal cap 4-99.8470/01, stainless steel cap4-99.6180/01
Use
| Type | Power [W] / Luminous flux [lm] | Light output [lm/W] | Angle of beam [°] | Color temperature [K] | CRI | Part of the luminaire | Weight [kg] |
|---|---|---|---|---|---|---|---|
| 591 36 11 (K) | 30 / 4 300 | 144 | 120 | 4000 (standard), 5000, 5700, 6500 | >80 | Terminal box | 4,8 |
| 591 36 12 (K) | 30 / 4 300 | 144 | 120 | 4000 (standard), 5000, 5700, 6500 | >80 | Holder | 4,8 |

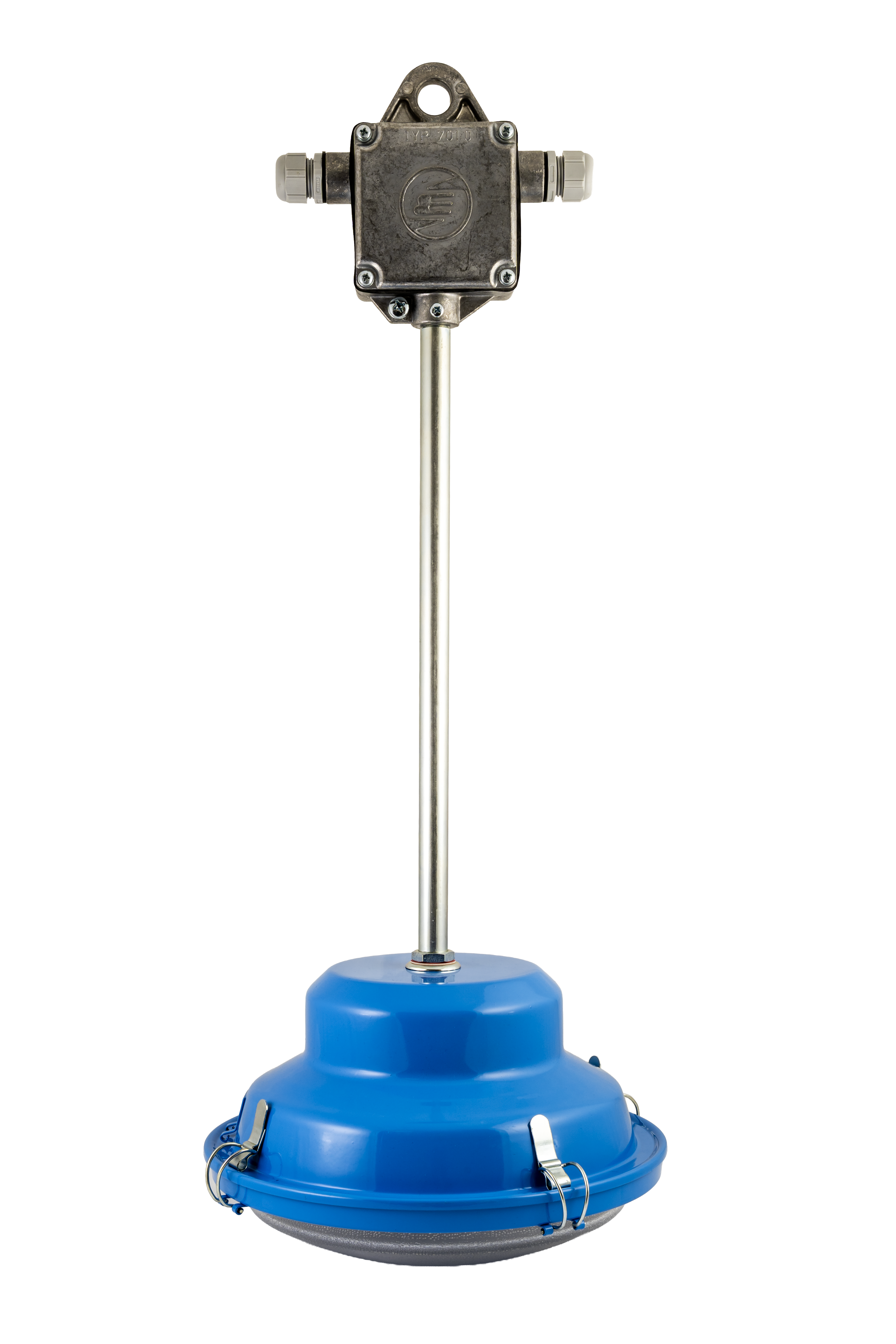

| 592 36 13 (K) | 30 / 4 300 | 144 | 120 | 4000 (standard), 5000, 5700, 6500 | >80 | Pipe and terminal box | 4,8 |

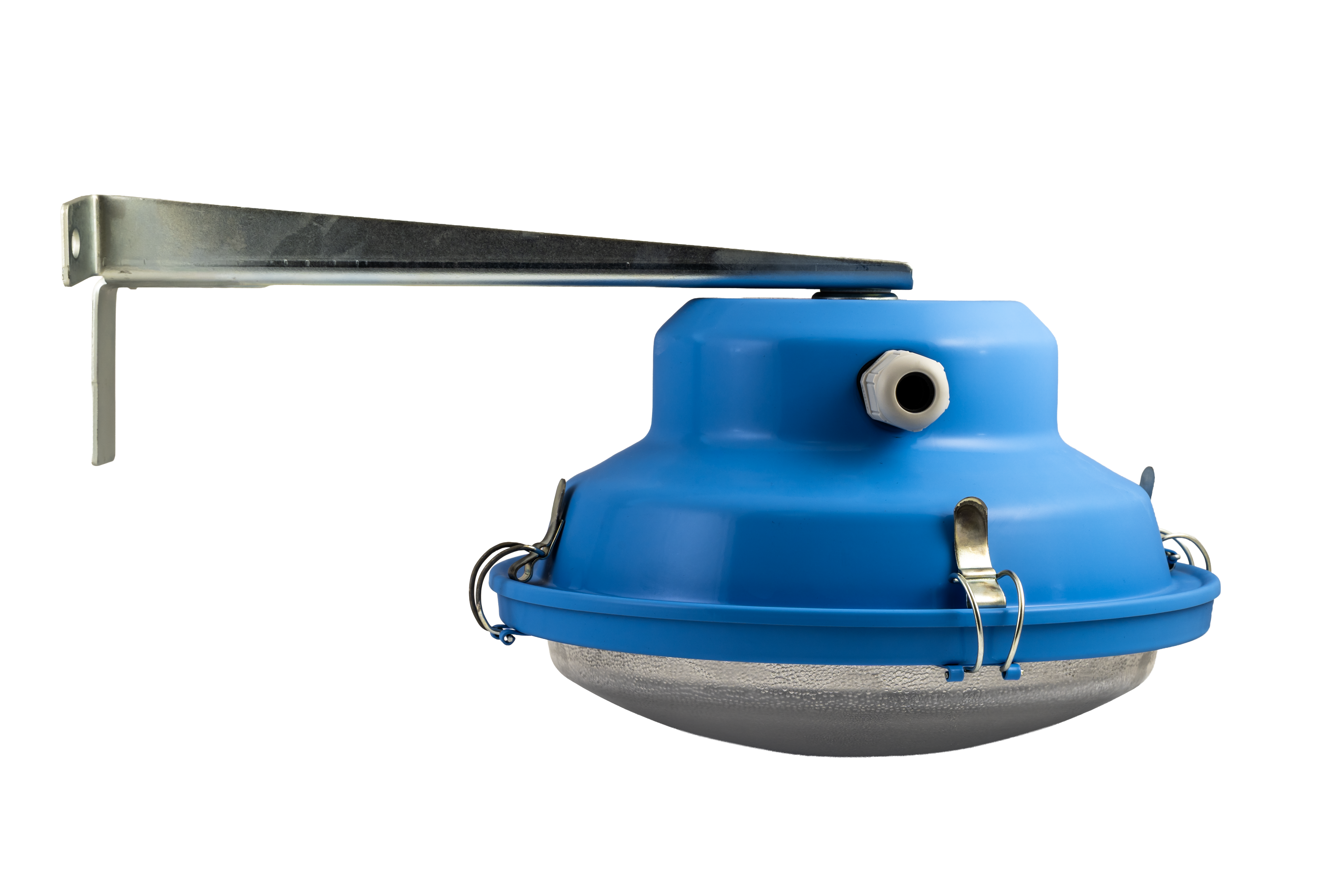

| 593 36 14 (K) | 30 / 4 300 | 144 | 120 | 4000 (standard), 5000, 5700, 6500 | >80 | Boom | 4,8 |
| *By adding the letter „K“ after the type designation, the light fittings will be provided with protective baskets (591 36 01 K). |
| **By adding the letter “p” after the type designation, the light fitting will be made with polycarbonate baskets and stainless-steel caps – for harsh conditions (591 36 01p). |
| ***By adding the letters “pz” after the type designation, the light fitting will be made with reinforced corrosion protection – for extra harsh conditions (591 36 01pz). |
Maximum circuit breaker load and number of luminaires connected in series
| Circuit breaker | B16 |
|---|---|
| Amount of the luminaires | 50 |
| Conductor cross-section | 2,5 |
*Actual values may vary due to the types of circuit breakers used and the installation environment.
| Start-up current lmax | Time |
|---|---|
| 5A | 50us |
