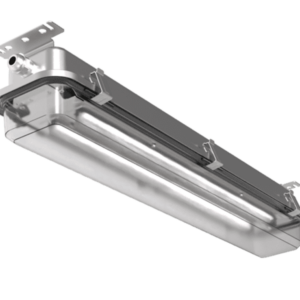

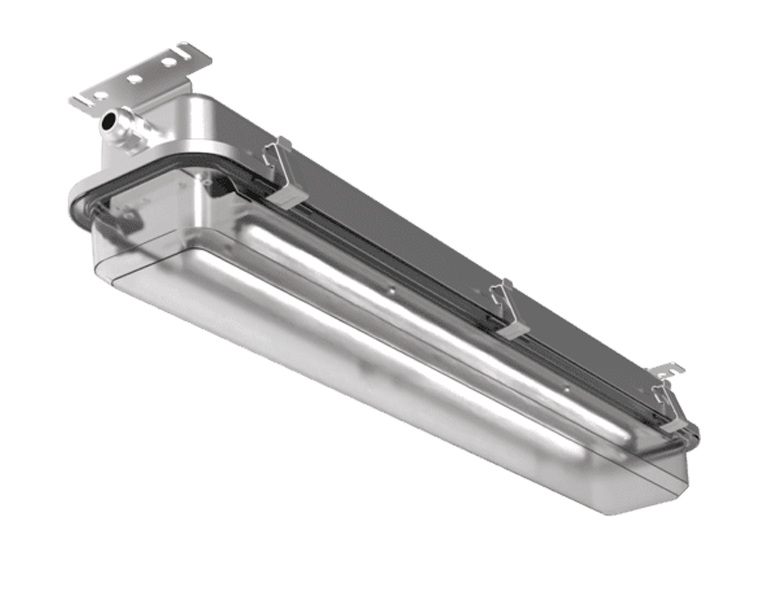

ES INX340LED
Use: Waterproof and dustproof industrial luminaire with LED modules and special optics, designed for use in industrial installations in areas with high or very low ambient temperatures.
Technical description:
The clips are made of stainless steel. The luminaire is manufactured with a color temperature of 4000 K.
The luminaire is intended for use in areas with high or very low ambient temperatures, depending on the type: –40 °C to +50 °C / +60 °C / +65 °C / +75 °C.
Made in EU
Made in EU
CE
Protection class
Protection class
I
Version
LED
LED
Voltage
120-277V, 50-60Hz (34E), 230V, 0/50-60Hz (35E)
Temperature
-40°C ÷ +75°C
Degree of protection (IP)
IP67
Impact resistance (IK)
IK10
Installation
using brackets
Emergency version
no
Technical description
Luminaire body
stainless steel
Diffuser
polycarbonate (PC)
Surface finish
power coated
Connection
through-wired (as standard), end-wired
Max. cable cross-section
2,5mm2
Cable glands (material)
plastic (as standard), metal
Cable glands (ø)
ø20
Lifetime
Lifetime
> 50.000h L70B10
Use
Files for download
Comparison of types: +75°C
| Type | Power input [W] | Luminous efficiency [lm/W] | Luminous flux [lm] | Ambient temperature |
|---|---|---|---|---|
| ES INX340LED-0600-W1-0 | 11,1 | 127 | 1414 | -25°C ÷ +75°C |
| ES INX340LED-1200-W2-0 | 22,3 | 127 | 2830 | -25°C ÷ +75°C |
Comparison of types: +70°C
| Type | Power input [W] | Luminous efficiency [lm/W] | Luminous flux [lm] | Ambient temperature |
|---|---|---|---|---|
| ES INX340LED-0600-W1-1 | 20,1 | 121 | 2438 | -25°C ÷ +70°C |
| ES INX340LED-1200-W2-1 | 40,2 | 122 | 4875 | -25°C ÷ +70°C |
Comparison of types: +60°C
| Type | Power input [W] | Luminous efficiency [lm/W] | Luminous flux [lm] | Ambient temperature |
|---|---|---|---|---|
| ES INX340LED-0600-W1-2 | 35,2 | 116 | 4100 | -25°C ÷ +60°C |
| ES INX340LED-1200-W2-2 | 71,2 | 115 | 8200 | -25°C ÷ +60°C |
Comparison of types: +50°C
| Type | Power input [W] | Luminous efficiency [lm/W] | Luminous flux [lm] | Ambient temperature |
|---|---|---|---|---|
| ES INX340LED-0600-W1-3 | 39,9 | 110 | 4380 | -25°C ÷ +50°C |
| ES INX340LED-1200-W2-3 | 79,8 | 110 | 8755 | -25°C ÷ +50°C |
Comparison of types: -40°C
| Type | Power input [W] | Luminous efficiency [lm/W] | Luminous flux [lm] | Ambient temperature |
|---|---|---|---|---|
| ES INX340LED-0600-Y2-3 | 27,2 | 122 | 3327 | -40°C ÷ +40°C |
| ES INX340LED-0600-X2-1 | 37,0 | 130 | 4816 | -40°C ÷ +40°C |
| ES INX340LED-1200-Y4-2 | 42,0 | 122 | 5138 | -40°C ÷ +40°C |
| ES INX340LED-1200-Y4-3 | 53,5 | 128 | 6827 | -40°C ÷ +40°C |
You can find the luminaire specifications in the product sheet
