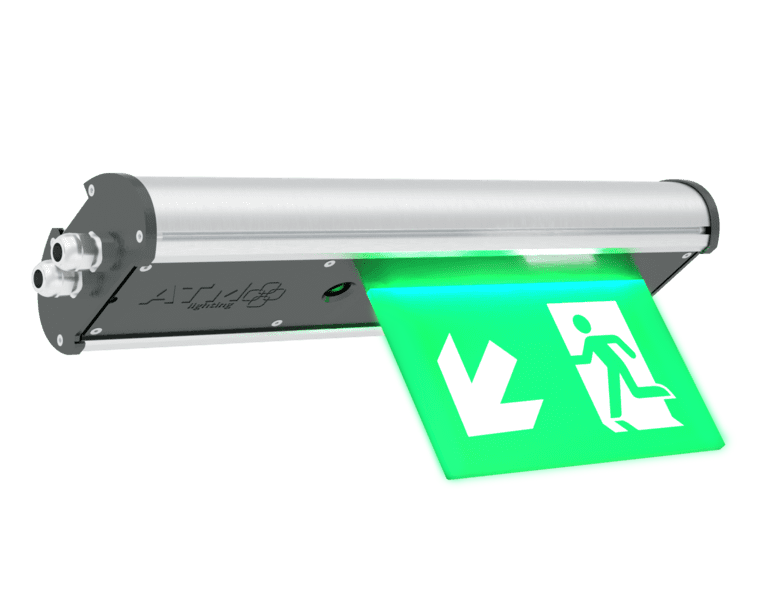

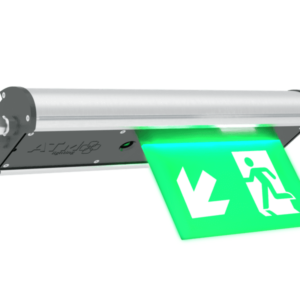

ES INS400LED-EXIT
LED luminaire for marking evacuation routes.
Technical description:
The luminaire is made with 2 cable glands on one side of the luminaire (2-0). The end caps are made of anodized powder coated aluminium. A3S version as standard.
Made in EU
Made in EU
CE
Protection class
Protection class
I
Version
LED
LED
Version
Surge protection: STD, DA: 1kV (LN) 2kV (L-PE); ZB, ZB-DA: 4kV (LN) 4kV (L-PE)
Voltage
220-240V 50-60Hz (34E), 220-240V 50-60Hz, 220-240V 0Hz (35E)
Temperature
-40°C ÷ +45°C
Control
DALI-2
Degree of protection (IP)
IP66, IP67
Installation
using brackets
Emergency version
yes
Technical description
Luminaire body
anodized aluminium
Diffuser
polycarbonate (PC)
Surface finish
power coated
Connection
end-wired
Max. cable cross-section
4mm2, 2,5mm2
Cable glands (material)
plastic (as standard), stainless steel
Cable glands (ø)
ø20, ø25
Lifetime
Lifetime
>70.000h, L80B10
>100.000h, L70B10
On request
On request description
version for central battery (ZB) or interface equipped with DALI protocol controller (DA), moisture compensation valve (VENT)
