ES INS390LED

Home » Products » Industrial light fitting » ES INS390LED

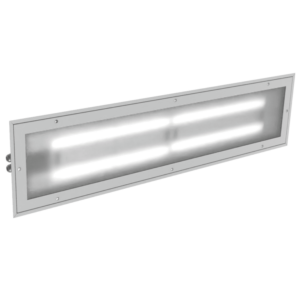

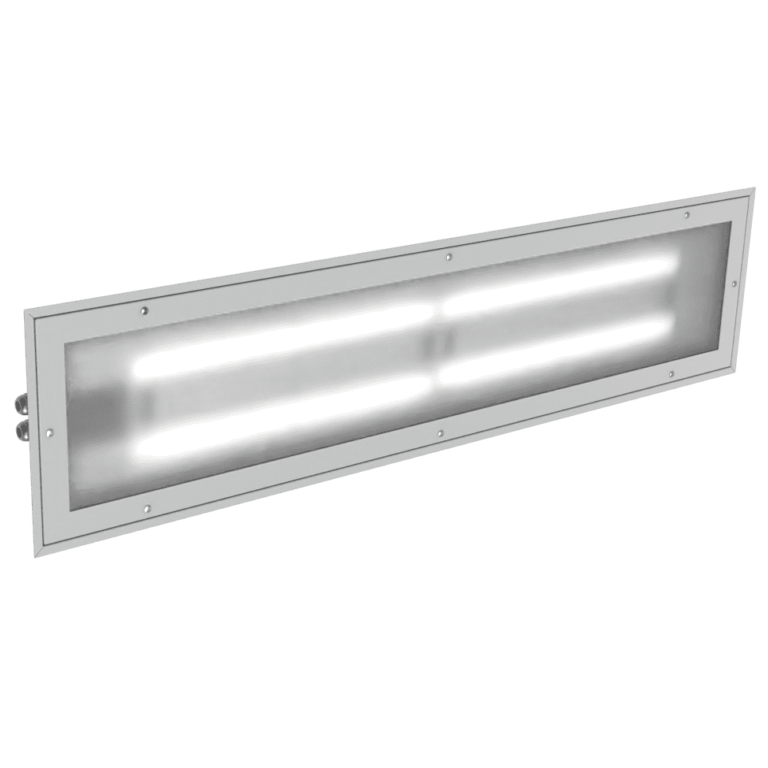

Industrial LED luminaire for suspended (grid) ceilings or for surface ceiling mounting, suitable for the food, cosmetics, and pharmaceutical industries as well as laboratories.

Technical description:

The luminaire body is made of stainless steel with a powder-coated finish. The protective cover is made of tempered glass (GL) or polycarbonate (PC). The luminaire is manufactured with two cable glands on one side.
Two light color versions are available: white and yellow. Luminaires emitting yellow light are used in the pharmaceutical, chemical, and cosmetic industries. This light transmits significantly less energy, thereby protecting medicines and cosmetics from degradation during production and packaging.

Made in EU

Protection class

Version

LED

Version

Surge protection: 35E: 4kV (LN), 4kV (L-PE) | 34E: 1kV (LN), 2kV (L-PE)

Voltage

220-240V 50-60Hz (34E), 220-240V 50-60Hz, 220-240V 0Hz (35E)

Temperature

-40°C ÷ +50°C

Control

DALI-2 (DA)

Degree of protection (IP)

IP65

Installation

Surface-mounted (SF), recessed (RC) – the luminaire is installed flush into the ceiling or wall, snap-fit with clips (CLIP) – the luminaire “clicks” into a prepared opening or holder, using threaded rods (TR) – the luminaire is secured with threaded rods (more information in the gallery or luminaire datasheet).

Emergency version

Technical description

Luminaire body

stainless steel

Diffuser

tempered glass (GL), polycarbonate (PC)

Surface finish

power coated

Connection

end-wired

Max. cable cross-section

4mm2, 2,5mm2

Cable glands (material)

plastic (as standard), metal

Cable glands (ø)

ø20, ø25

Lifetime

>70.000h, L80 B10
>100.000h, L70 B10

On request

On request description

On request:

ZB version: The device is designed for central battery supply, but if the frost is not too severe (above –35 °C), it can automatically switch to the standard electrical network.
Emergency version A3: Version with a built-in 3-hour emergency power module. Operation in normal (“white mode”) is possible at temperatures above 0 °C.
Version with DALI-2 driver (Performance may be limited at temperatures below –30 °C).
