ES INS350LED
Luminaire for lighting demanding indoor and outdoor industrial areas.
Technical description:
Waterproof and dustproof industrial luminaire with LED modules that can be encapsulated. The housing is made of powder coated stainlees steel. The diffuser is made of polycarbonate, PMMA, glass, safety-glass. The fixture is equipped with plug and socket for fast connection.
Version equipped with power supply with the DALI-2 protocol is available as DA. The light fitting can be equipped with encapsulated LED modules and be adapted to work in high corrosion environment C5.
Made in EU
Made in EU
CE
Protection class
Protection class
I, III
Version
LED
LED
Version
Surge protection: LN: 4kV, L-PE: 4kV
Voltage
220-240V, 0/50-60Hz (35E), 24V, 0Hz (11E)
Temperature
-30 °C up to max. +60 °C (depending on the version)
Control
DALI-2 (DA)
Degree of protection (IP)
IP66, IP68
Impact resistance (IK)
IK08 (GL), IK10 (PC)
Installation
see the gallery
Emergency version
no
Technical description
Luminaire body
stainless steel
Diffuser
tempered glass, polymethyl methacrylate (PMMA), tempered glass with safety film, polycarbonate (PC)
Surface finish
power coated
Connection
end-wired, through-wired
Max. cable cross-section
2,5mm2
Cable glands (material)
plastic (as standard), plug and socket (RST)
Cable glands (ø)
ø25
Lifetime
Lifetime
Lifetime:
>70.000h L80B10
>100.000h L70B10
Driver functions
Driver functions
DALI 2 (DA)
On request
On request description
Colour temperature: 4000K, 4500K, 6000K;

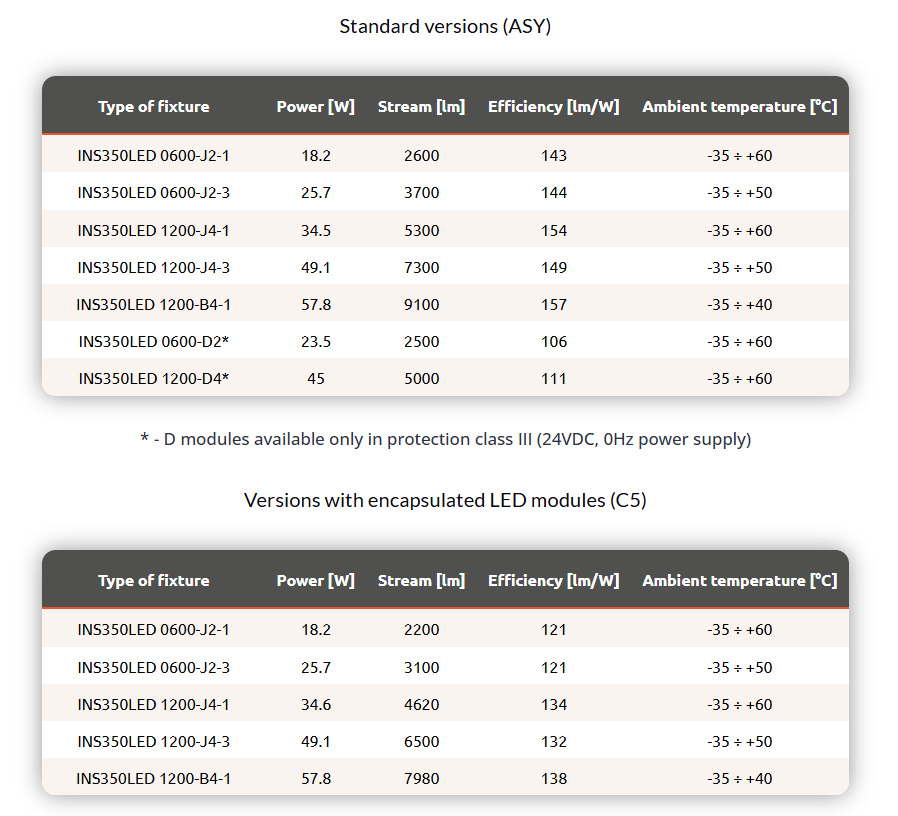

Versions with encapsulated LED modules (C5)
Use
