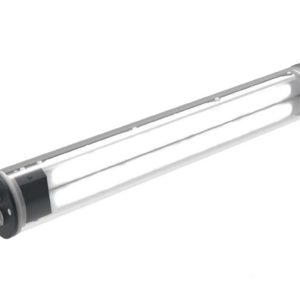

ES INS240LED

Home » Products » Industrial light fitting » ES INS240LED

Industrial luminaire for indoor and outdoor use, e.g. wastewater treatment plants, car washes, sewers, etc.

Technical description:

The diffuser is UV-resistant and can be used in both indoor and outdoor environments. The end caps are made of aluminum or austenitic chromium-nickel stainless steel.

The luminaire has a very high IP69 protection rating.

The luminaire is additionally equipped with special optics that ensure light distribution. There is a choice of four optics.

Made in EU

Protection class

I, III

Version

LED

Version

Surge protection: L/N-PE: 4kV, LN: 4kV, EFT: 4kV

Voltage

24V 0Hz (11E), 220-240V, 50÷60Hz (34E), 220-240V, 50÷60Hz +176-280V 0Hz (35E)

Temperature

-40°C ÷ +60°C

Control

DALI-2 (DA)

Degree of protection (IP)

IP66, IP67, IP69K

Impact resistance (IK)

IK11+

Emergency version

yes

Technical description

Luminaire body

anodized aluminium

Diffuser

polycarbonate PC (tube), OPAL polycarbonate (PC, tube), OPAL polymethylmetakrylát (PMMA, tubus)

Surface finish

power coated

Connection

end-wired

Max. cable cross-section

2,5mm2

Cable glands (material)

plastic (as standard), metal, plug and socket (RST)

Cable glands (ø)

ø20, ø25

Lifetime

>70.000h L80B10

>100.000h L70B10

On request

On request description

The luminaire can optionally be equipped with an emergency power module (A3S – 3-hour emergency operation at low temperatures), adapted for central battery supply (ZB), equipped with a driver featuring a DALI-2 interface (DA), or with a constant light output function (CLO/DUTY).

A version with encapsulated LED modules and components made of grade 316 steel (C5) is also available.
