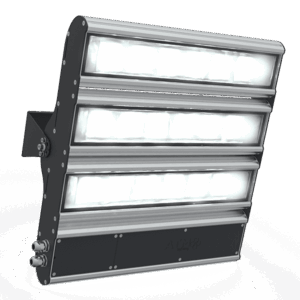

ES HPL450LED

Home » Products » Industrial light fitting » ES HPL450LED

Luminaire for indoor and outdoor industrial lighting.

Technical description:

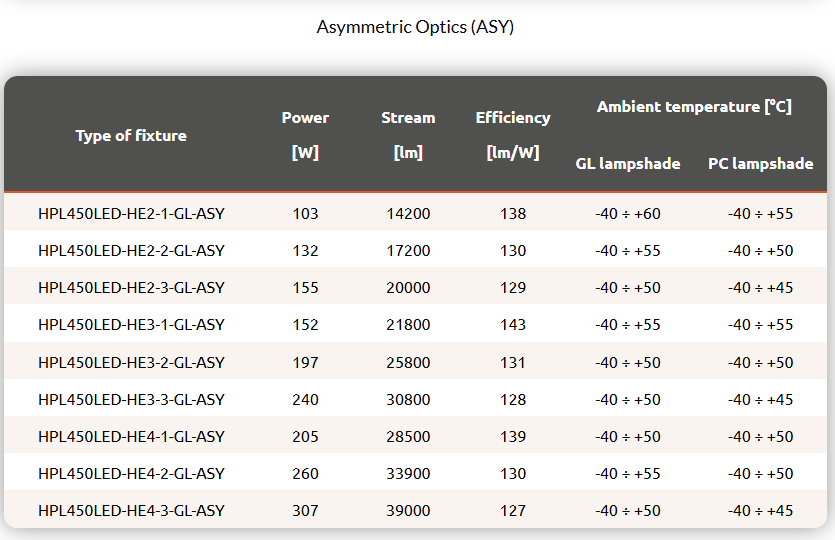

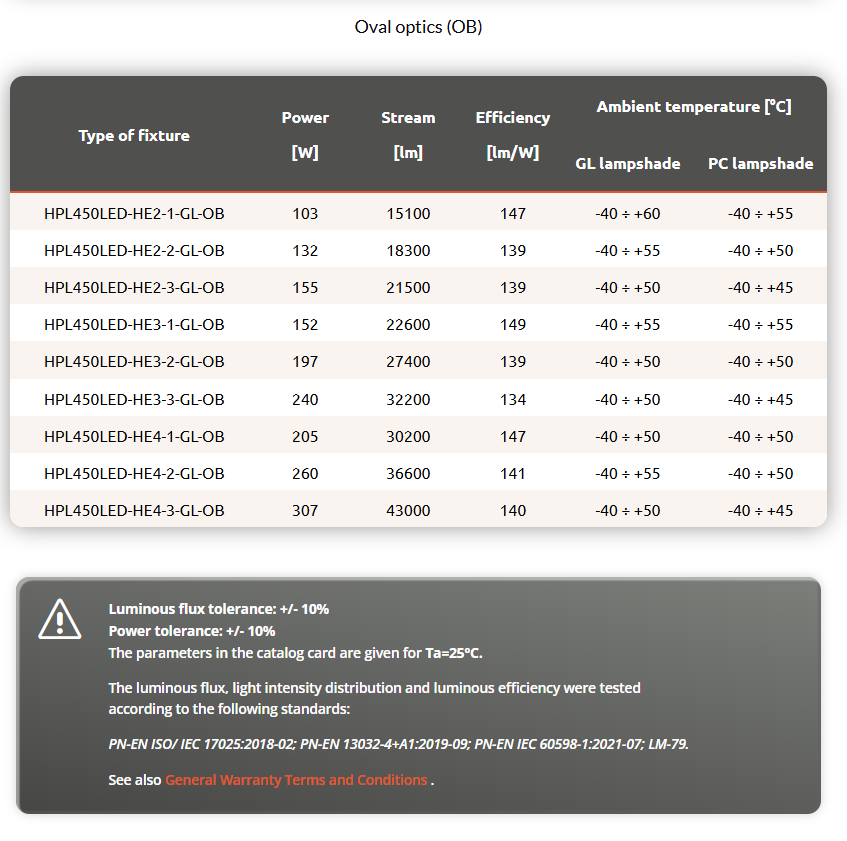

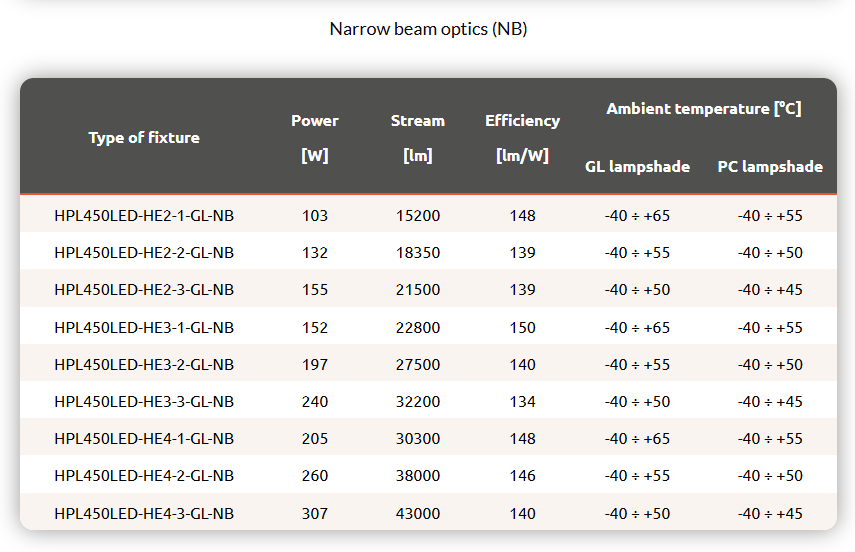

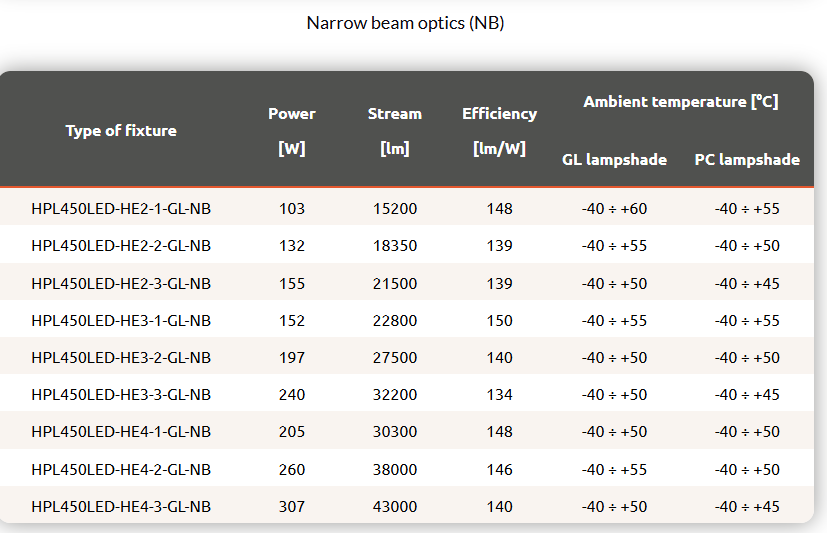

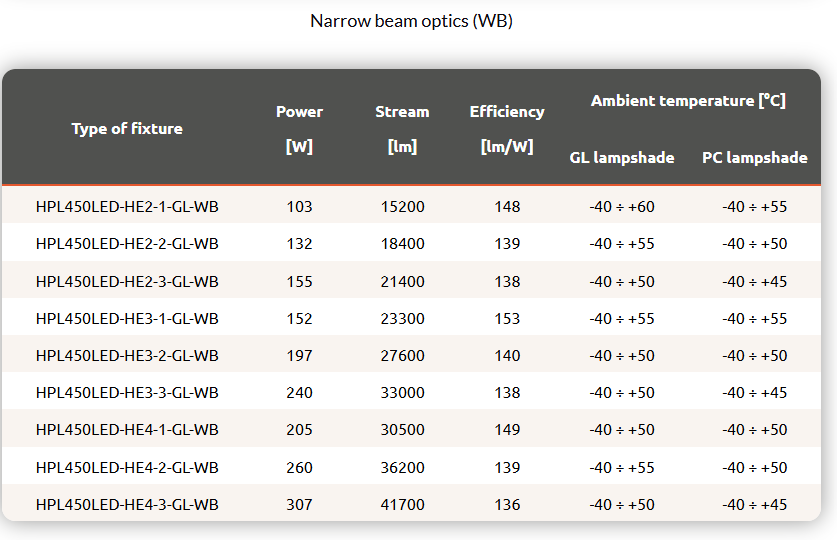

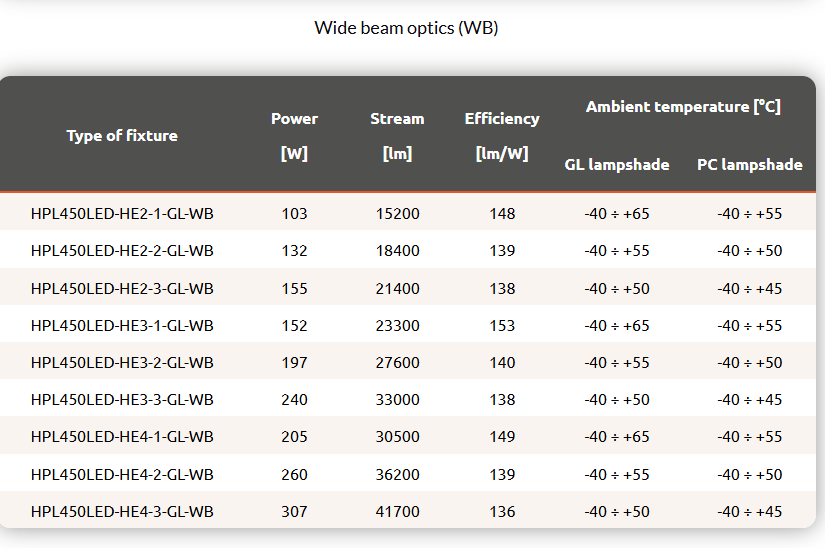

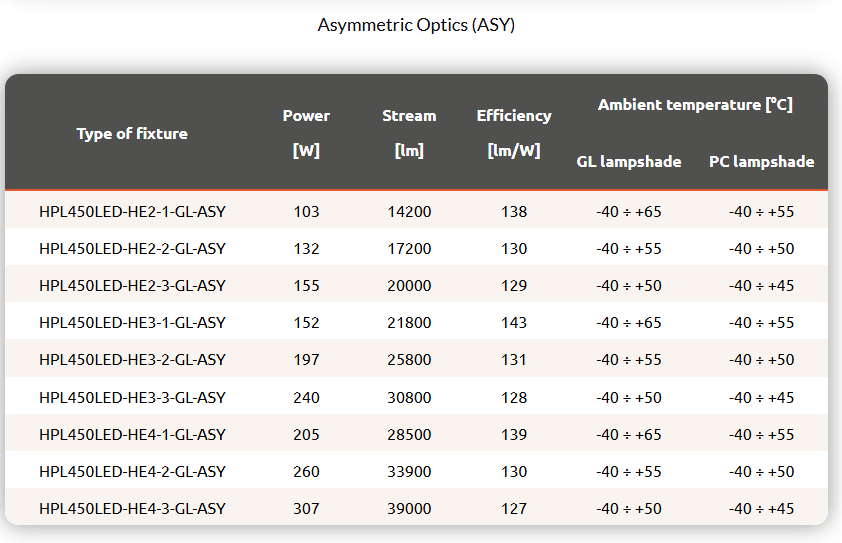

Industrial spotlight with high lumen output LED modules, with a choice of five available optics. The luminaire body is made of anodized aluminium, the optical housing is made of tempered glass (GL) or polycarbonate (PC).

The reflector is designed as standard for operation with a central ZB battery and the DA version is also equipped with a power supply compatible with DALI-2 and D4i protocols.

Optionally, it can also be adapted for operation with a three-phase 3F network.

Made in EU

Protection class

Version

LED

Version

Surge protection: LN: 6kV, L-PE: 10kV

Voltage

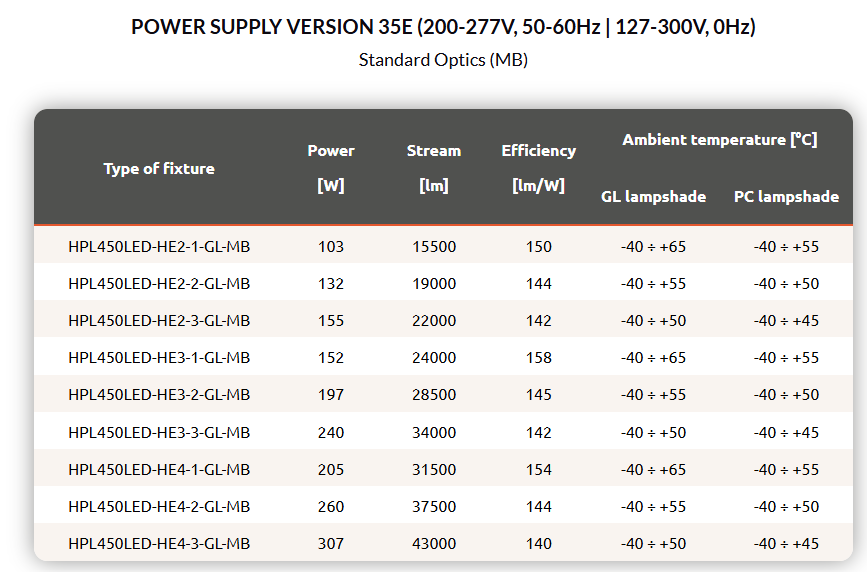

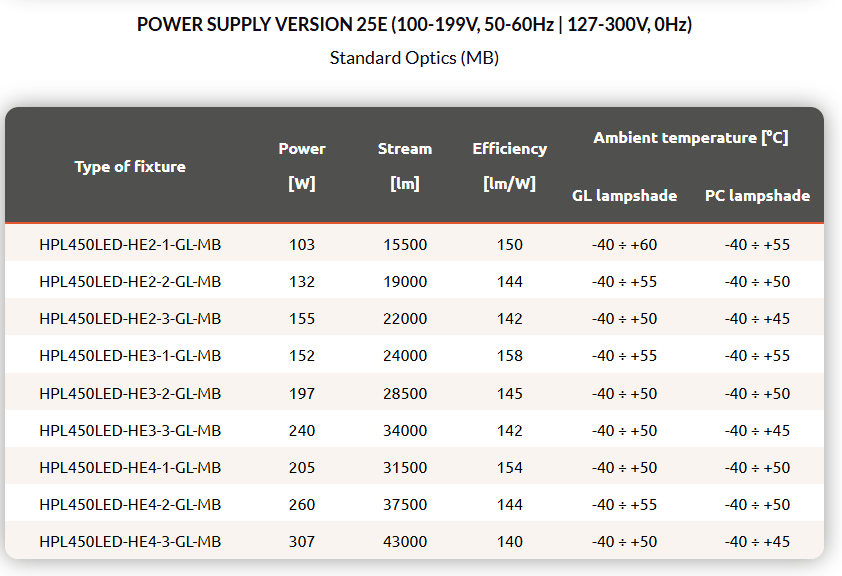

100-199V, 50-60Hz; 127-300V, 0Hz (25E), 200-277V, 50-60Hz; 127-300V, 0Hz (35E)

Temperature

-40°C ÷ +65°C

Control

DALI-2 (DA)

Degree of protection (IP)

IP66, IP67

Impact resistance (IK)

IK09 (GL), IK10 (PC)

Installation

using the swivel bracket

Emergency version

Technical description

Luminaire body

anodized aluminium

Diffuser

tempered glass, polycarbonate (PC)

Surface finish

power coated

Connection

end-wired

Max. cable cross-section

4mm2, 2,5mm2, 6 mm2

Cable glands (material)

plastic (as standard)

Cable glands (ø)

ø20, ø25

Lifetime

>50.000h L80B10

>70.000h L70B10

>100.000h L70B50

On request

On request description

Version adapted for central battery operation (ZB), version adapted for three-phase power supply (3F), version equipped with DALI-2 power supply (DA), version equipped with wireless communication module in Thread® network (WDA)
