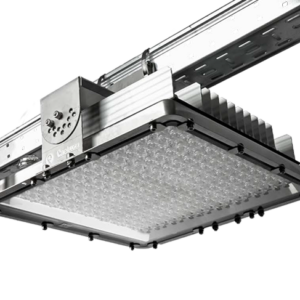

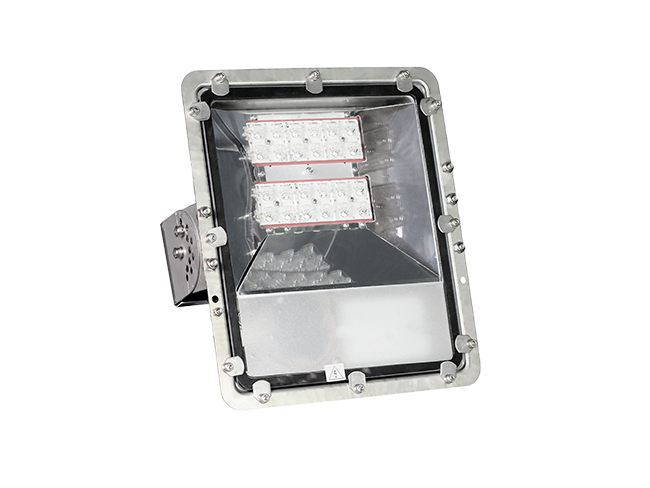

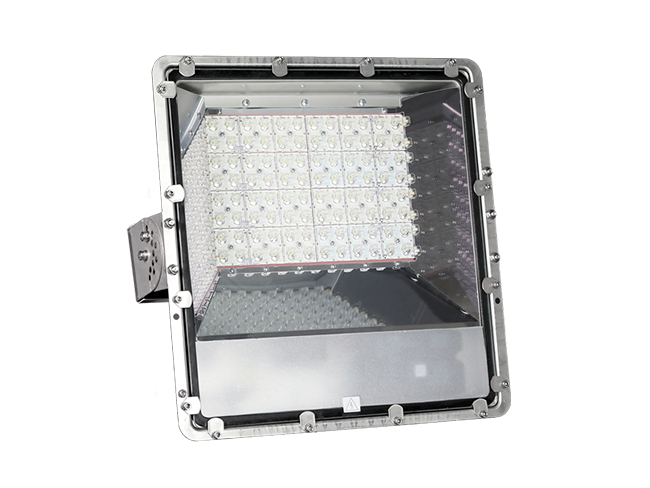

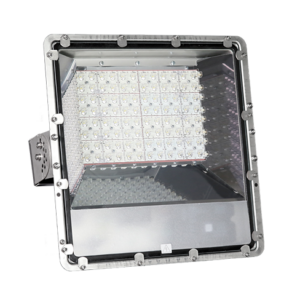

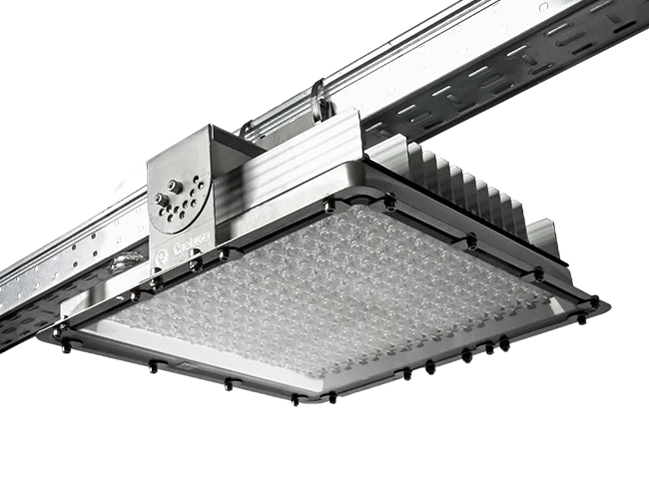

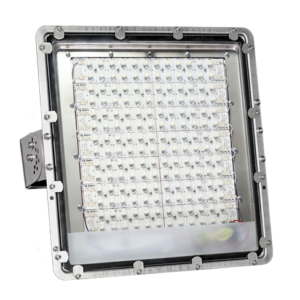

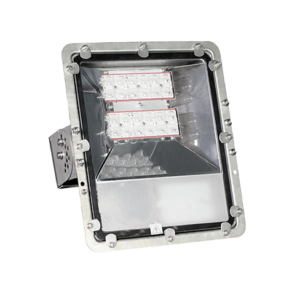

ES ARCALED series
Luminaire for lighting highways, roads and tunnels.
Technical description:
The body of the luminaire is made of AlSi 316-L stainless steel, the body and housing of the power supply box (ARCALED 5) is made of AlSi 316-L stainless steel, without welds. The rubber seal of the glass housing is ageing resistant, non-removable, suitable for installation in corrosive environments such as tunnels.

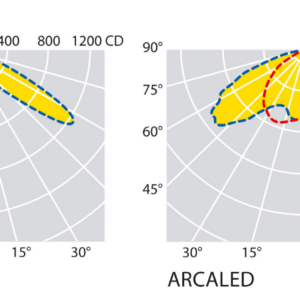

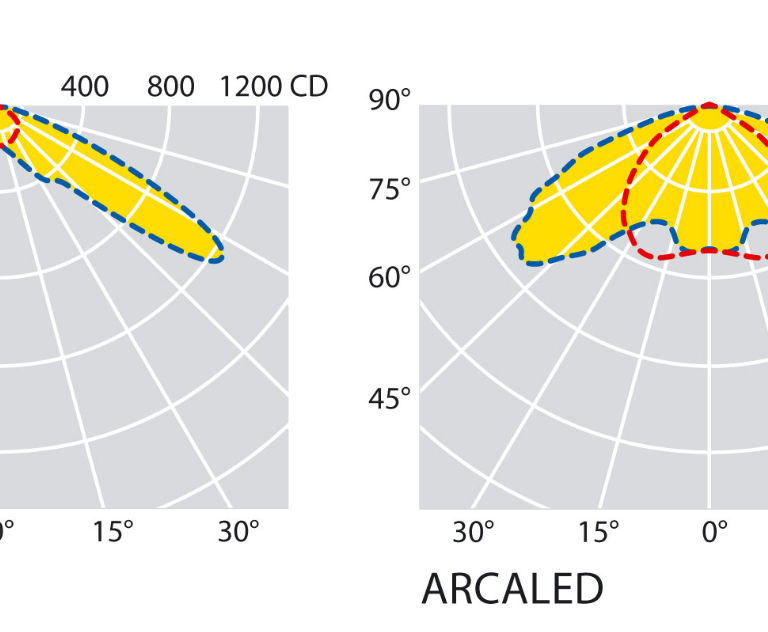

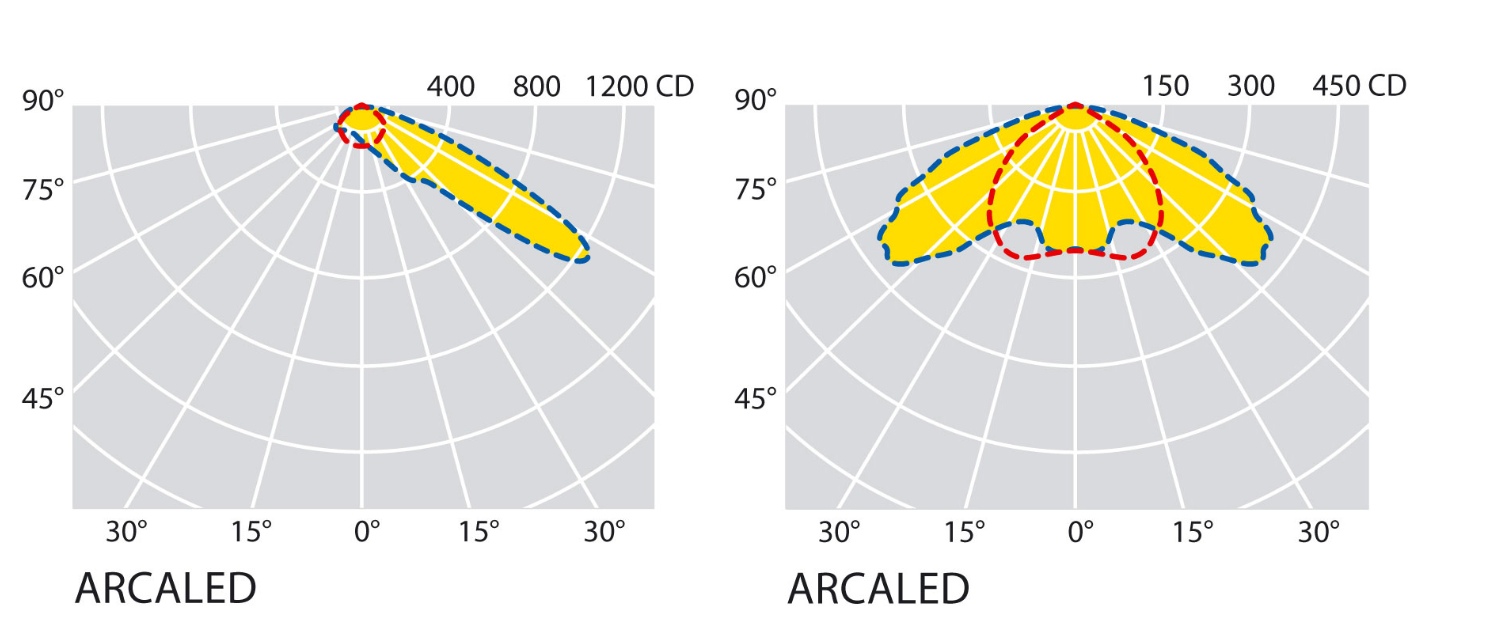

There are two optics to choose from.
Made in EU
Made in EU
CE
Version
LED
LED
Version
Surge protection: up to 10 kV, DC and differential mode. The surge protector is connected between the phase and neutral conductors
Voltage
30 V AC (±10%), 50 - 60 Hz V AC
Temperature
-40 °C ÷ +40 °C
Installation

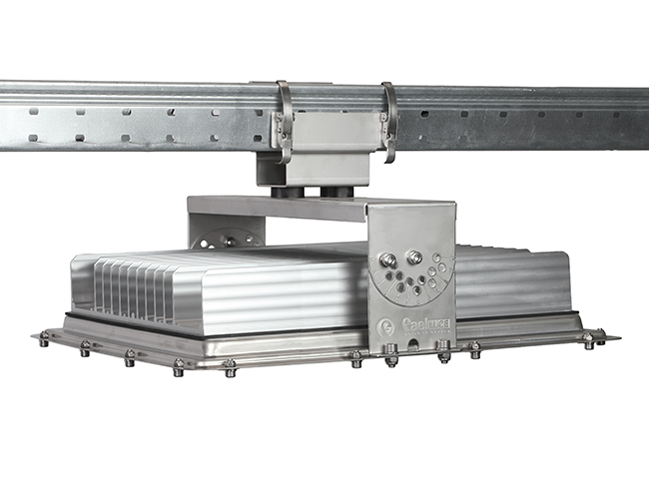

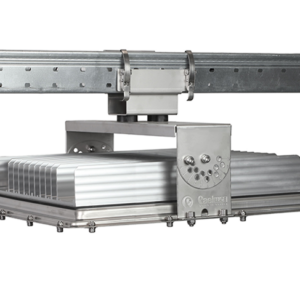

Hanging installation on the mounting trough (dimensions 100x75 mm or 100x65 mm). Recommended installation height 5m.
Technical description
Luminaire body
Nerezová ocel AISI 316-L
Diffuser
extra-clear tempered glass protective display cover, 4 mm thick, made from a single piece, without a perimeter mounting ring
Surface finish
none
Lifetime
Lifetime
>100.000h, L90B10
Use
