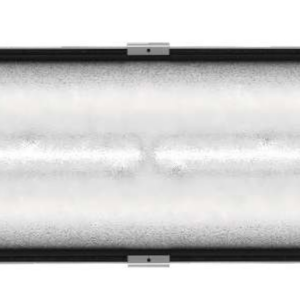

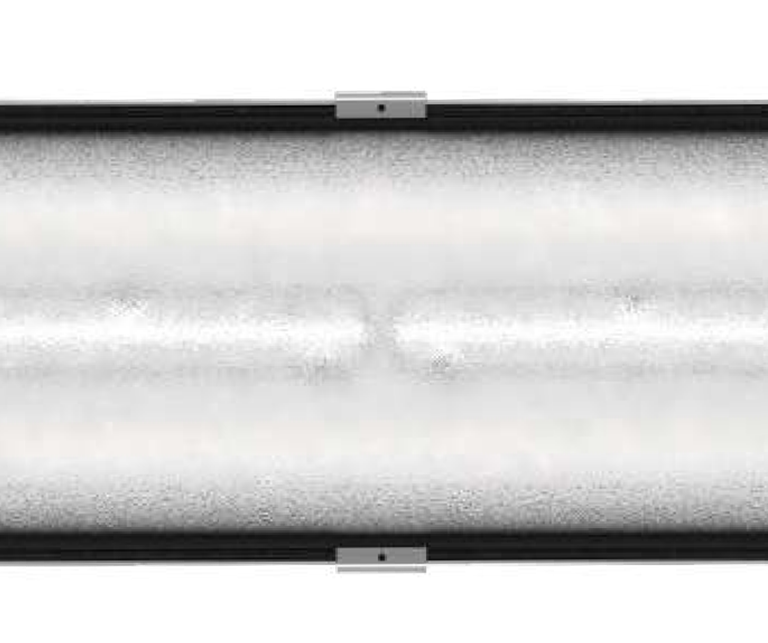

ES INS230LED
Industrial LED luminaire is designed for indoor lighting.
Technical description:
Waterproof and dustproof industrial luminaire with LED modules and stainless steel clips. Number of pins on the sides of the luminaire according to customer’s request (2-1, 2-0, 2-2).
The luminaire is not intended for exposure to external weather conditions.
Made in EU
Made in EU
CE
Protection class
Protection class
I, II
Version
LED
LED
Version
Surge protection: 1kV (LN), 2kV (L-PE)
Voltage
220-240V 50-60Hz (34E), 220-240V 50-60Hz, 220-240V 0Hz (35E)
Temperature
-25°C ÷ +50°C
Control
DALI-2 (DA)
Degree of protection (IP)
IP66, IP67
Impact resistance (IK)
IK08 (PC)
Installation
using brackets
Emergency version
yes
Technical description
Luminaire body
polyester reinforced with glass fibers (GRP)
Diffuser
polymethyl methacrylate (PMMA), polycarbonate (PC)
Surface finish
power coated
Connection
end-wired, through-wired
Max. cable cross-section
2,5mm2
Cable glands (material)
plastic (as standard), metal
Cable glands (ø)
ø20, ø25
Lifetime
Lifetime
>70.000h L80B10;
>100.000h L70B10
On request
On request description
choice of 2 optics, version adapted for use with central battery (ZB), power supply with DALI-2 interface (DA),
version equipped with 3-hour emergency power supply module (A3), version equipped with 3-hour emergency power supply module for sub-zero temperatures (A3S), version equipped with encapsulated LED modules (C4).
