Technical description:

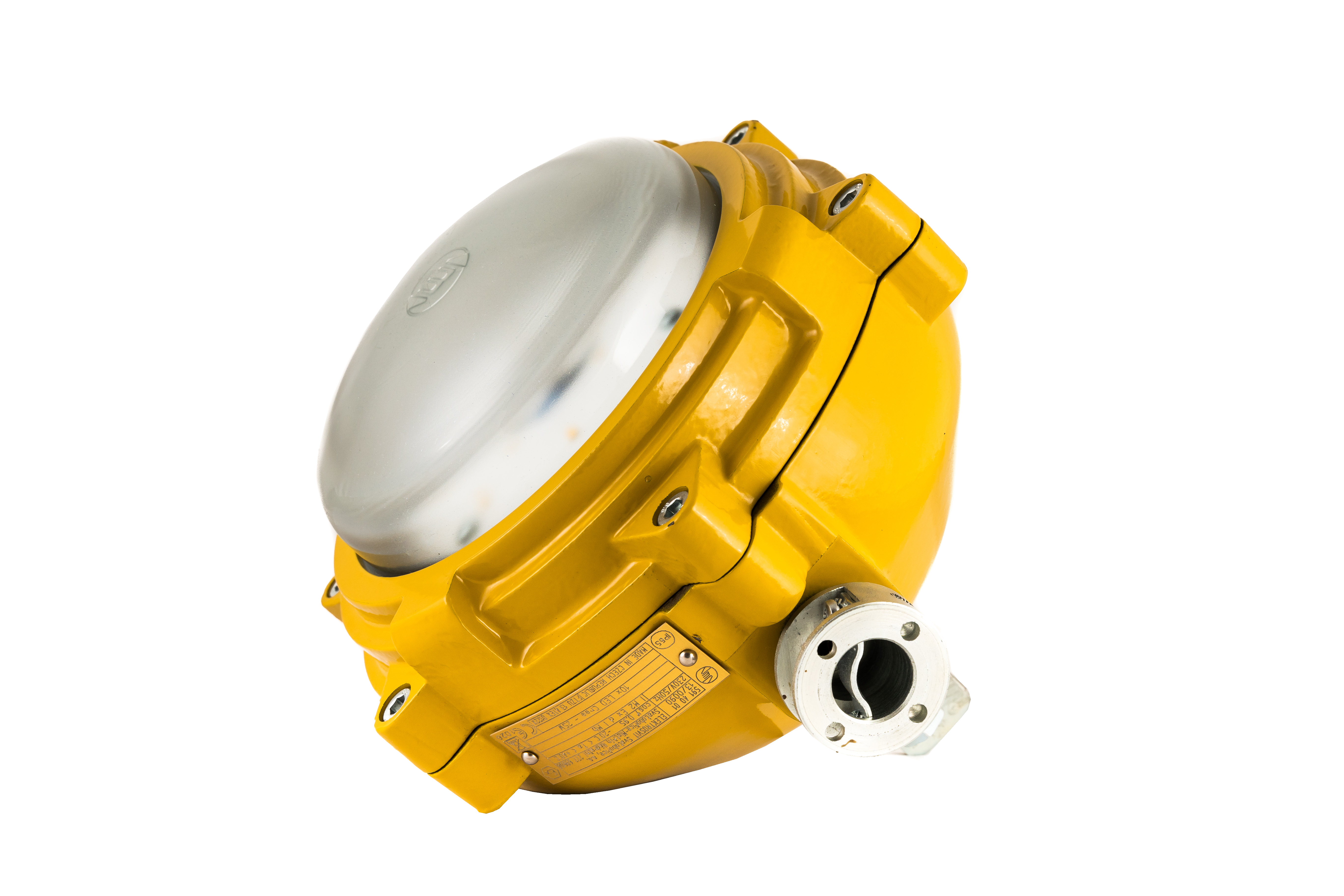

The body and flange of the light fitting are grey iron castings finished with RAL 1005 powder paint. The optical cover is made of tempered glass. A steel suspension with an eye is fixed to the top part of the body. There are two cable outlets on the light fitting sides. There is an LED module built inside the light fitting and it is comprised of a board fitted with LEDs and a power supply.

The contact surface between the flange and the body of the light fitting makes up the cylindrical joint of the explosion-proof cap “d”.

The light fitting is designed as a through light fitting, for three-phase connection (five-core cable). When the light fitting is used as a terminal light fitting, the free cable outlet is blinded with a plug. The max. cross-section of the connecting conductors is 4 mm2.
